OPA4182IDT - Texas Instruments

Description: Precision Amplifiers

Download OPA4182IDT Model

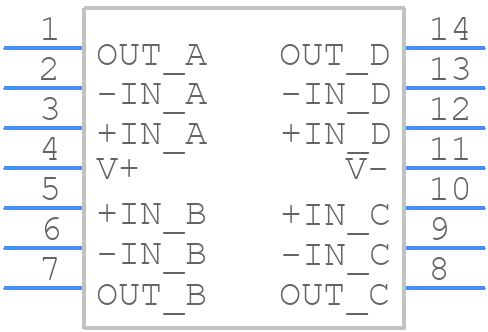

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA4182IDT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G14)
click to zoom
3D Models
OPA4182IDT - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G14)
click to zoom

OPA4182IDT Details

  • Manufacturer Part Number:

    OPA4182IDT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.007 µA

  • Bias Current-Max (IIB) @25C:

    0.00035 µA

  • Common-mode Reject Ratio-Min:

    143 dB

  • Common-mode Reject Ratio-Nom:

    168 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    4 mA

  • Supply Voltage Limit-Max:

    20 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    5000

  • Voltage Gain-Min:

    17782794

  • Wideband:

    NO

  • Width:

    3.9 mm

OPA4182IDT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the OPA4182IDT datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible.
  • To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, make sure to decouple the power supply pins with capacitors, and use a low-ESR capacitor for the output filter. Also, avoid using long input traces and keep the feedback network as simple as possible.
  • The maximum power dissipation of OPA4182IDT is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a formula to calculate the maximum power dissipation, which is Pd(max) = (TJ(max) - TA) / θJA, where TJ(max) is the maximum junction temperature, TA is the ambient temperature, and θJA is the thermal resistance. Typically, the maximum power dissipation is around 1.4W at 25°C ambient temperature.
  • Yes, OPA4182IDT can operate in high-temperature environments, but its performance and reliability may be affected. The device is specified to operate up to 125°C, but the maximum junction temperature should not exceed 150°C. At high temperatures, the device's offset voltage, noise, and distortion may increase, and the output current may decrease. It's essential to derate the power dissipation and ensure proper thermal management to prevent overheating.
  • To protect OPA4182IDT from EMI and RFI, use a shielded enclosure, and ensure that the PCB layout is designed to minimize radiation and susceptibility. Use bypass capacitors on the power supply pins, and consider adding EMI filters or common-mode chokes to the input and output signals. Additionally, use a low-pass filter or a ferrite bead to filter out high-frequency noise.
