OPA4186DR - Texas Instruments

Description: Precision Amplifiers

Download OPA4186DR Model

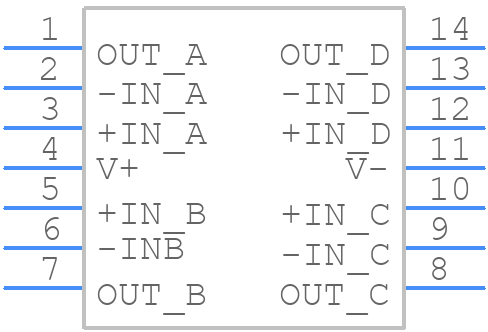

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA4186DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G14)
click to zoom
3D Models
OPA4186DR - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G14)
click to zoom

OPA4186DR Details

  • Manufacturer Part Number:

    OPA4186DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0062 µA

  • Bias Current-Max (IIB) @25C:

    0.0006 µA

  • Common-mode Reject Ratio-Min:

    100 dB

  • Common-mode Reject Ratio-Nom:

    134 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    40 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -13 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.25 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.35 V/us

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage Limit-Max:

    13 V

  • Supply Voltage-Nom (Vsup):

    2.25 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    750

  • Voltage Gain-Min:

    1412538

  • Wideband:

    NO

  • Width:

    3.9 mm

OPA4186DR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the OPA4186DR datasheet, which includes keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a thermal pad on the bottom of the device to improve heat dissipation.
  • The choice of gain resistors depends on the desired gain and bandwidth of the amplifier. Texas Instruments provides a gain resistor calculator tool on their website, which can help engineers select the optimal resistors for their specific application. Additionally, the datasheet provides a table of recommended gain resistors for different gains and bandwidths.
  • The maximum power dissipation of OPA4186DR is dependent on the ambient temperature and the thermal resistance of the device. The datasheet provides a power dissipation calculation formula, which takes into account the supply voltage, output current, and thermal resistance. Engineers can use this formula to calculate the maximum power dissipation for their specific application.
  • OPA4186DR is rated for operation up to 125°C, but its performance may degrade at high temperatures. Engineers should consult the datasheet for temperature-related specifications, such as the maximum junction temperature and thermal resistance, to ensure the device operates within its recommended limits. Additionally, they may need to consider derating the device's power dissipation and output current at high temperatures.
  • To protect OPA4186DR from EMI, engineers can use shielding, filtering, and grounding techniques. They should also ensure that the device is placed in a shielded area of the PCB, away from high-frequency signals and antennas. Additionally, they can use EMI filters, such as ferrite beads or common-mode chokes, to reduce electromagnetic radiation.
