A good PCB layout for the OPA4322 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a reference design and layout guidelines in the datasheet and application notes.
The choice of gain resistors depends on the desired gain, input impedance, and noise requirements. TI provides a gain resistor calculator tool and application notes to help with the selection. A good starting point is to use the recommended values in the datasheet and adjust based on the specific application requirements.
The maximum power dissipation of the OPA4322 is dependent on the package type and ambient temperature. The datasheet provides a power dissipation calculator and thermal resistance values to help estimate the maximum power dissipation. Ensure that the device is properly heat-sinked, and the ambient temperature is within the recommended operating range.
The OPA4322 is a high-impedance device, making it susceptible to noise and interference. Use proper shielding, grounding, and decoupling techniques to minimize noise. Add filters, such as RC filters or active filters, to reject noise and interference. TI provides application notes and filter design tools to help with noise reduction.
The recommended input impedance is typically in the range of 1 kΩ to 10 kΩ, while the output impedance should be as low as possible (ideally < 100 Ω). This ensures optimal signal integrity and minimizes distortion. Refer to the datasheet and application notes for specific recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4322SAIPWR Overview

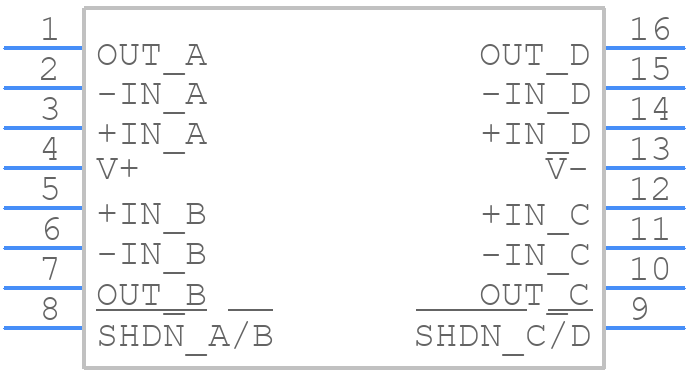

Use the download button to access the OPA4322SAIPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA43,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
