Texas Instruments provides a recommended PCB layout in the OPA4330 datasheet, which includes guidelines for component placement, trace routing, and grounding. Following this layout can help minimize noise, reduce parasitic inductance, and ensure optimal performance.
The choice of input and output capacitors depends on the specific application and frequency range. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and noise filtering requirements.
The maximum power dissipation of OPA4330AIRGYR is 1.4W. To ensure it doesn't overheat, the device should be mounted on a PCB with a thermal pad connected to a copper plane, and the ambient temperature should be kept below 85°C. Additionally, the device should be operated within the recommended supply voltage and current limits.
While OPA4330AIRGYR is rated for operation up to 125°C, its performance and reliability may degrade at high temperatures. If operation above 85°C is required, the device should be derated according to the thermal derating curve provided in the datasheet, and additional thermal management measures should be taken.
To ensure EMC, the OPA4330AIRGYR should be used with a proper PCB layout, shielding, and filtering. The device should be placed in a shielded enclosure, and the input and output traces should be routed away from noise sources. Additionally, the device should be operated within the recommended frequency range and supply voltage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4330AIRGYR Overview

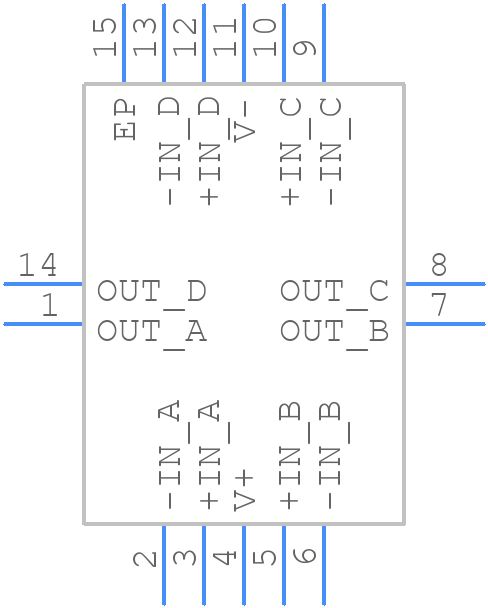

Use the download button to access the OPA4330AIRGYR schematic symbol, PCB footprint, and 3D model.
