A good PCB layout for the OPA4330 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a reference design and layout guidelines in the datasheet and application notes.
The choice of gain resistors depends on the desired gain, input impedance, and output impedance. TI provides a gain resistor calculator tool and application notes that can help with the selection. Additionally, the datasheet provides guidelines for selecting the optimal gain resistors.
The maximum power dissipation of the OPA4330 is 670mW. To ensure you don't exceed it, calculate the power dissipation using the formula Pd = (Vcc x Icc) + (Vout x Iout), and ensure it is below the maximum rating. You can also use thermal design and heat sinking to reduce the junction temperature.
To filter out noise and EMI, use a combination of passive and active filtering techniques. Add capacitors and resistors to filter out high-frequency noise, and consider using a ferrite bead or common-mode choke to filter out EMI. Additionally, use shielding and grounding techniques to minimize noise coupling.
The recommended operating voltage range for the OPA4330 is 2.7V to 5.5V. Operating the device outside this range may affect its performance, stability, and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4330AIRGYT Overview

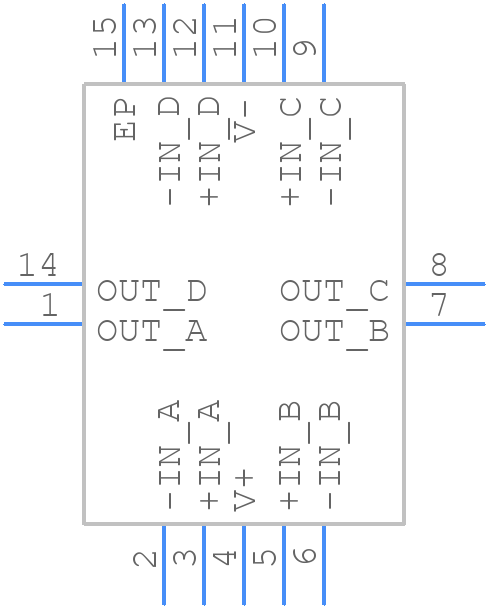

Use the download button to access the OPA4330AIRGYT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA43,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
