Texas Instruments provides a recommended PCB layout in the OPA4336E datasheet, which includes guidelines for component placement, trace routing, and grounding. Following this layout can help minimize noise, reduce parasitic inductance, and ensure optimal performance.
The choice of output filter depends on the specific application requirements, such as noise rejection, signal bandwidth, and load impedance. Texas Instruments recommends using a low-pass filter with a cutoff frequency above the signal bandwidth to minimize noise and aliasing. A 2nd-order or 3rd-order filter is typically sufficient, but a higher-order filter may be needed for more demanding applications.
The maximum power dissipation of OPA4336EA/250G4 is 1.4W. To ensure it doesn't overheat, follow proper thermal design practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the ambient temperature within the recommended operating range. Additionally, ensure that the device is not operated at maximum power dissipation for extended periods.
The OPA4336EA/250G4 is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. If your application requires operation above 125°C, consider using a more temperature-robust op-amp or taking additional thermal management measures, such as heat sinking or cooling.
To ensure EMC with OPA4336EA/250G4, follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding parallel traces. Additionally, use shielding, filtering, and decoupling capacitors as needed to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4336EA/250G4 Overview

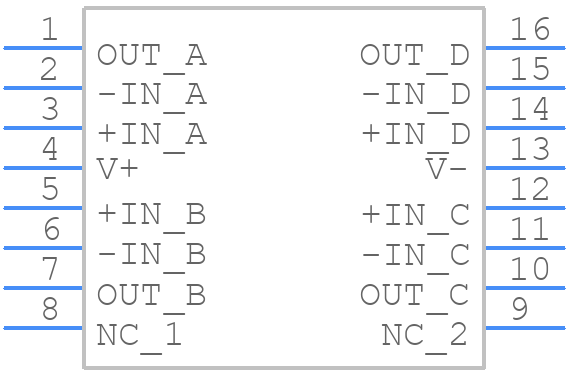

Use the download button to access the OPA4336EA/250G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA43,
or try a keyword search, such as Operational Amplifiers
