A good PCB layout for OPA4342UA involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. A good starting point is to use the gain resistor values recommended in the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the resistor's tolerance, temperature coefficient, and parasitic capacitance.
The maximum power dissipation of OPA4342UA is 670mW. To ensure you don't exceed it, calculate the power dissipation based on the supply voltage, output current, and package thermal resistance. Use thermal design and layout techniques such as heat sinks, thermal vias, and thermal pads to minimize the junction temperature.
Use a combination of passive and active filtering techniques, such as RC filters, ferrite beads, and shielding, to reduce noise and interference. Also, consider using a low-pass filter at the output of the OPA4342UA to remove high-frequency noise.
The recommended input impedance is 1kΩ to 10kΩ, and the recommended output impedance is 100Ω to 1kΩ. However, the optimal impedance values depend on the specific application requirements, such as gain, bandwidth, and noise performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4342UA Overview

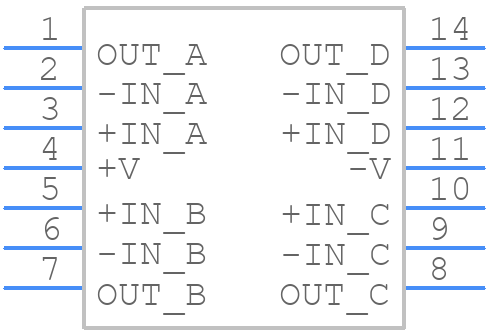

Use the download button to access the OPA4342UA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA43,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
