A good PCB layout for OPA453FAKTWT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability in high-gain configurations, use a compensation capacitor (e.g., 10-100 pF) between the output and the inverting input. Additionally, ensure that the gain-setting resistors are of high quality and have low parasitic inductance.
The maximum power dissipation of OPA453FAKTWT is 1.4 W. To calculate power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, OPA453FAKTWT is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures, and the maximum junction temperature should not exceed 150°C.
To protect OPA453FAKTWT from EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, use a low-pass filter or shielding on the PCB to reduce radiated emissions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA453FAKTWT Overview

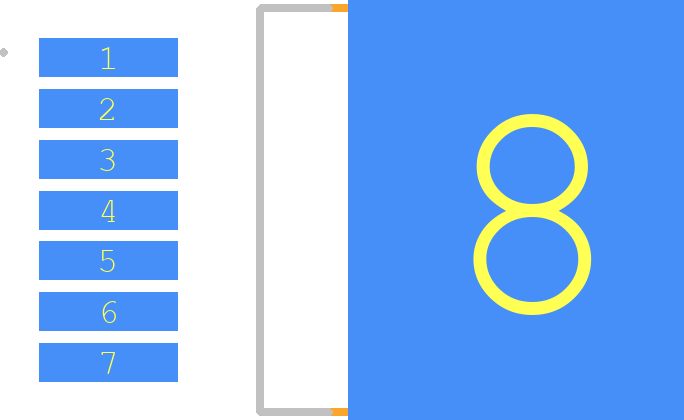

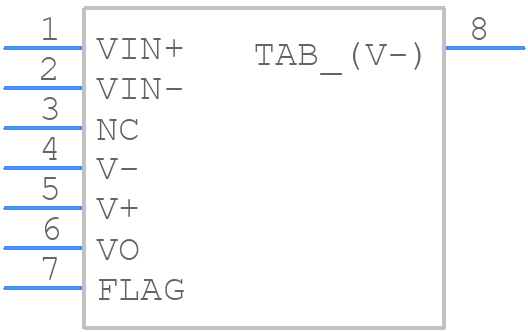

Use the download button to access the OPA453FAKTWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA45,
or try a keyword search, such as Operational Amplifiers
