Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and separate, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated analog ground plane is recommended.
To ensure stability, ensure that the circuit is properly compensated, and the gain and phase margins are sufficient. Use a compensation capacitor (Cc) between the output and the inverting input, and a series resistor (Rs) at the output to prevent oscillations. Also, minimize the distance between the op-amp and the feedback components.
The maximum power dissipation of OPA4703EA/2K5 is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, OPA4703EA/2K5 can operate in high-temperature environments, but its performance may degrade. The device is specified to operate up to 125°C, but the maximum junction temperature (Tj) should not exceed 150°C. Above 125°C, the device's offset voltage, noise, and distortion may increase, and its bandwidth may decrease.
To protect OPA4703EA/2K5 from ESD, handle the device by the body or use an anti-static wrist strap or mat. Use ESD-sensitive devices and materials, and ensure that the PCB is properly grounded. Avoid touching the device's pins or exposed internal components, and use a soldering iron with an ESD-safe tip.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4703EA/2K5 Overview

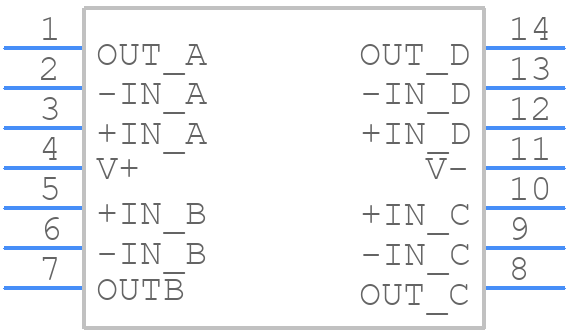

Use the download button to access the OPA4703EA/2K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA47,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
