A good PCB layout for the OPA4820ID involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. Additionally, it's recommended to use a low-ESR capacitor for the power supply bypassing.
The output capacitor should be chosen based on the desired closed-loop bandwidth and stability. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF, and a low ESR (Equivalent Series Resistance) to ensure stability and minimize ringing.
The maximum power dissipation of the OPA4820ID is dependent on the ambient temperature and the package type. For the SOIC package, the maximum power dissipation is 1.4W at 25°C. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, the OPA4820ID can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the source, and the output impedance is low enough to drive the load. Additionally, the bandwidth and slew rate of the op-amp should be sufficient for the application.
To protect the OPA4820ID from input overvoltage and ESD, use input clamping diodes or a voltage limiter circuit to limit the input voltage to within the recommended range. Additionally, use ESD protection devices such as TVS diodes or ESD arrays to protect the inputs from electrostatic discharge.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
OPA4820ID Overview

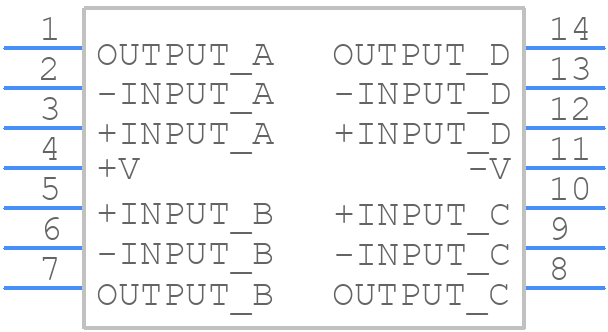

Use the download button to access the OPA4820ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA48,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
