Texas Instruments recommends a layout with a solid ground plane, short traces, and minimal impedance mismatch. A 4-layer PCB with a dedicated analog ground plane is ideal. Keep the input and output traces separate and avoid crossing them over each other.
The output capacitor value depends on the output current, load impedance, and desired stability. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF. For high-current applications, use a larger capacitor value. Consult the datasheet and application notes for more specific guidance.
The maximum power dissipation of the OPA4820IDR is 1.4W. To calculate it, use the formula: Pd = (Vcc x Icc) + (Vout x Iout). Ensure that the calculated power dissipation is within the recommended limit to prevent overheating and ensure reliability.
Yes, the OPA4820IDR can be used as a unity-gain buffer. However, ensure that the input impedance is high enough to prevent loading the source, and the output impedance is low enough to drive the load. Also, consider the bandwidth and distortion requirements, as the op-amp may not maintain its performance at high frequencies.
Use shielding, filtering, and grounding techniques to protect the OPA4820IDR from EMI and RFI. Ensure that the PCB layout is designed to minimize radiation and susceptibility. Use ferrite beads, common-mode chokes, or EMI filters to attenuate high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4820IDR Overview

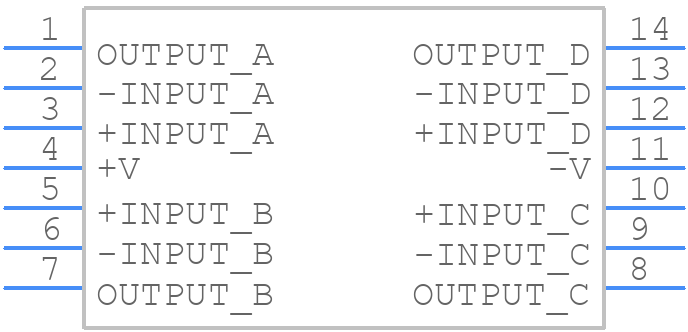

Use the download button to access the OPA4820IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA48,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
