A good PCB layout for OPA4830IPWR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a reference design and layout guidelines in the datasheet and application notes.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. TI provides a gain resistor calculator tool and application notes that can help with selecting the right resistors. Additionally, the datasheet provides guidelines for selecting gain resistors based on the desired gain and bandwidth.
The maximum power dissipation of OPA4830IPWR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated based on the thermal resistance of the package and the ambient temperature.
Yes, OPA4830IPWR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and derate the power dissipation accordingly to ensure reliable operation.
To protect OPA4830IPWR from EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use filtering and shielding on the input and output lines. Additionally, use a low-pass filter or a ferrite bead on the power supply lines to reduce high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA4830IPWR Overview

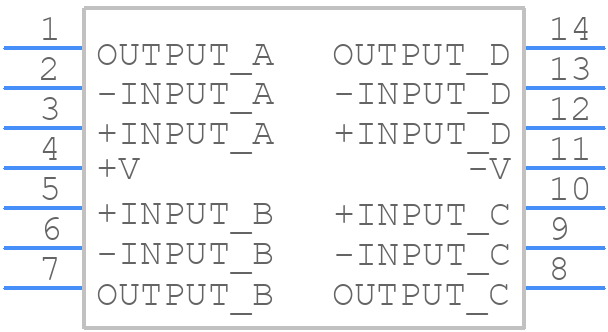

Use the download button to access the OPA4830IPWR schematic symbol, PCB footprint, and 3D model.
