Texas Instruments provides a recommended PCB layout in the OPA567 datasheet, which includes guidelines for component placement, routing, and thermal management. Following this layout can help minimize noise, thermal issues, and ensure optimal performance.
The choice of output filter depends on the specific requirements of your application, such as the desired bandwidth, noise rejection, and output impedance. Texas Instruments provides guidance on output filter design in the OPA567 datasheet and application notes. You can also use online filter design tools or consult with a TI engineer for assistance.
The maximum power dissipation of OPA567 is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a thermal resistance value (θJA) of 45°C/W. To ensure the device doesn't overheat, you should provide adequate heat sinking, such as a thermal pad or heat sink, and ensure good airflow around the device.
Yes, OPA567 can be used with a single-supply voltage. However, you'll need to ensure that the input common-mode voltage is within the specified range. You can use a voltage divider or a virtual ground circuit to generate a mid-supply voltage reference. Consult the datasheet and application notes for more information.
Oscillations or instability issues with OPA567 can be caused by a variety of factors, including layout issues, component selection, or incorrect configuration. To troubleshoot, start by reviewing the PCB layout and ensuring that it follows the recommended guidelines. Check the component values and ensure they are within the specified ranges. You can also use simulation tools or consult with a TI engineer for assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA567AIRHGRG4 Overview

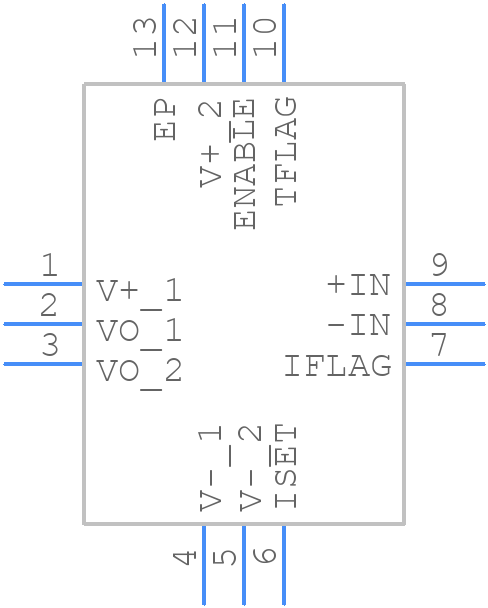

Use the download button to access the OPA567AIRHGRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA56,
or try a keyword search, such as Operational Amplifiers
