OPA569AIDWPR - Texas Instruments

Description: Power Op Amp, Output Signal Swings Within 200mV of Rails at 2A Output Current

Download OPA569AIDWPR Model

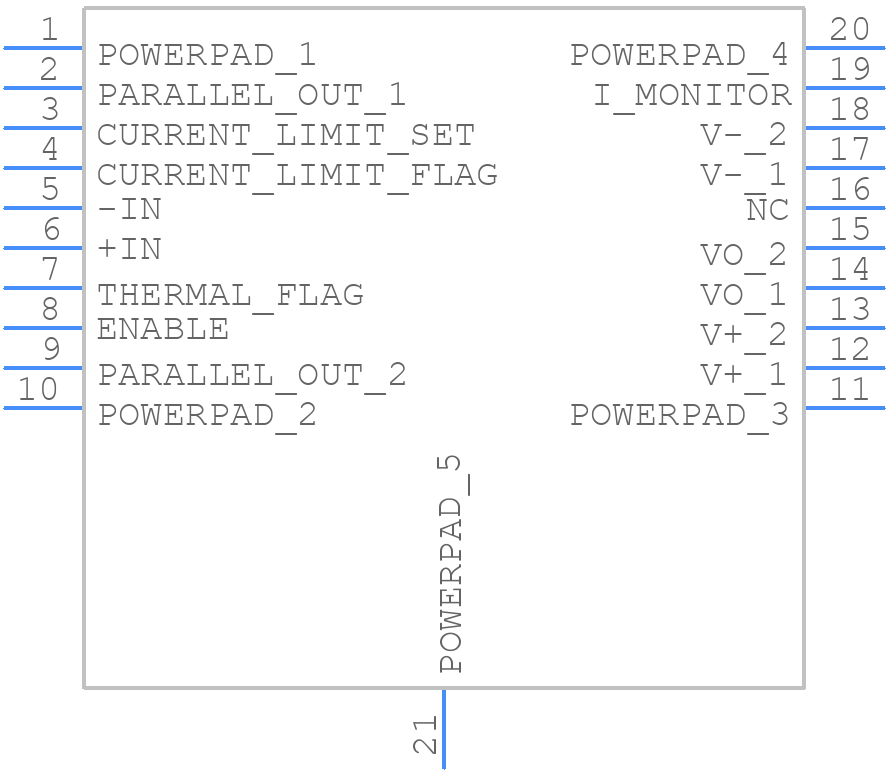

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

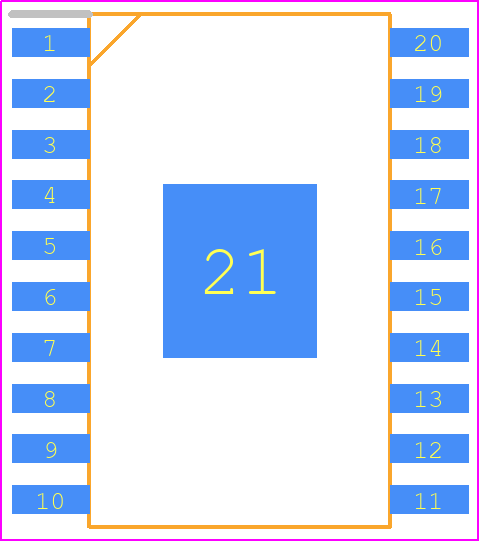

OPA569AIDWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWP (R-PDSO-G20)_1
click to zoom
3D Models
OPA569AIDWPR - Texas Instruments  - 3D model - Small Outline Packages - DWP (R-PDSO-G20)_1
click to zoom

OPA569AIDWPR Details

  • Manufacturer Part Number:

    OPA569AIDWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00001 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00001 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.825 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Slew Rate-Nom:

    1.2 V/us

  • Supply Current-Max:

    11 mA

  • Supply Voltage Limit-Max:

    7.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1200

  • Voltage Gain-Min:

    1000

  • Wideband:

    NO

  • Width:

    7.52 mm

OPA569AIDWPR Frequently Asked Questions (FAQs)

  • A good PCB layout for OPA569AIDWPR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, and to ensure that the feedback loop has a sufficient phase margin. Additionally, the device's output impedance should be considered when designing the feedback network.
  • The maximum power dissipation of OPA569AIDWPR is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
  • Yes, OPA569AIDWPR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal characteristics and ensure proper thermal management when operating in high-temperature environments.
  • To protect OPA569AIDWPR from EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure that the PCB layout is designed to minimize radiation and susceptibility to EMI.
