OPA593DNTR - Texas Instruments

Description: Operational Amplifiers - Op Amps 85-V 100-uV wide-ba ndwidth (10 MHz) hig

Download OPA593DNTR Model

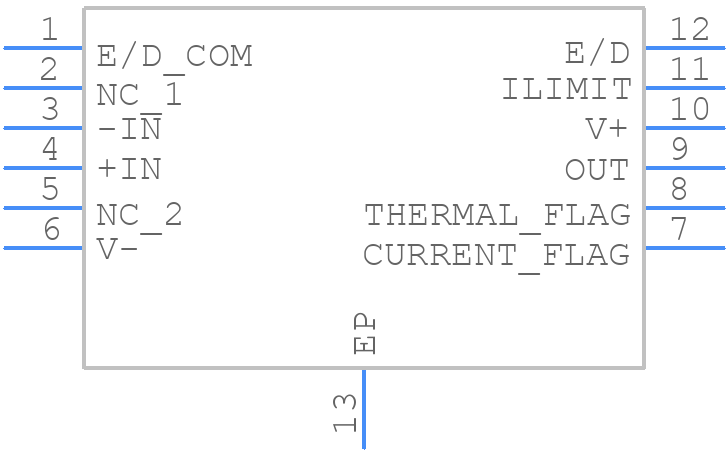

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA593DNTR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DNT0012B-2
click to zoom
3D Models
OPA593DNTR - Texas Instruments  - 3D model - Small Outline No-lead - DNT0012B-2
click to zoom

OPA593DNTR Details

  • Manufacturer Part Number:

    OPA593DNTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Common-mode Reject Ratio-Min:

    124 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    100 µV

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    45 V/us

  • Supply Current-Max:

    4 mA

  • Supply Voltage Limit-Max:

    85 V

  • Supply Voltage-Nom (Vsup):

    85 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    3162277.66

  • Wideband:

    NO

  • Width:

    4 mm

OPA593DNTR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the OPA593DNTR datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, TI recommends using a 4-layer PCB with a solid ground plane to minimize noise and EMI.
  • To ensure stability, follow the recommended compensation network and component values provided in the datasheet. Additionally, ensure that the output capacitor is properly sized and placed close to the output pin, and that the input and output traces are properly routed to minimize parasitic inductance and capacitance.
  • The maximum power dissipation of OPA593DNTR is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a thermal resistance value of 24.4°C/W. To calculate the maximum power dissipation, use the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
  • OPA593DNTR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. The datasheet provides temperature-dependent specifications and limitations, including reduced output current and increased offset voltage at high temperatures. Ensure that your design takes into account these limitations and provides adequate thermal management.
  • OPA593DNTR has built-in overcurrent protection, but it's still important to ensure that the device is not exposed to voltages beyond its absolute maximum ratings. Use voltage regulators and overvoltage protection devices to limit the input voltage, and consider adding current-limiting resistors or fuses to prevent overcurrent conditions.
