For optimal performance, it is recommended to follow a star-ground layout, keep the input and output traces short and away from noise sources, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins, and the device should be operated within its recommended operating conditions.
The high input bias current of the OPA642U can be handled by using a low-impedance source, such as a voltage divider or a buffer amplifier, to drive the input. Additionally, the input bias current can be compensated for by using a matched resistor network or by using an amplifier with a low input bias current.
The OPA642U can drive a maximum capacitive load of 100 pF, but it is recommended to limit the capacitive load to 10 pF or less to ensure stability and optimal performance.
To ensure stability and prevent oscillations, it is recommended to follow the recommended layout and PCB design guidelines, use a solid ground plane, and decouple the power pins with capacitors. Additionally, the device should be operated within its recommended operating conditions, and the input and output traces should be kept short and away from noise sources.
The recommended power supply decoupling for the OPA642U is to use a 0.1 μF ceramic capacitor in parallel with a 10 μF tantalum capacitor, placed close to the power pins. This helps to filter out noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA642U Overview

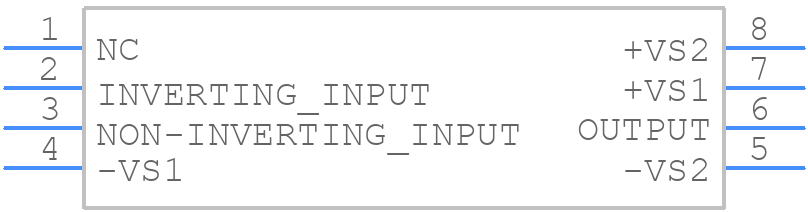

Use the download button to access the OPA642U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA64,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
