For optimal performance, it is recommended to follow a star-ground layout, keep the input and output traces short and away from each other, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins, and the feedback network should be kept close to the op-amp.
To prevent oscillations due to the high slew rate of the OPA660AP, it is recommended to use a series resistor (Rs) in the feedback network to reduce the bandwidth and improve stability. Additionally, a capacitor (Cc) can be added in parallel with Rs to further reduce the bandwidth and improve stability.
The OPA660AP can drive a maximum capacitive load of 100pF. Exceeding this limit can cause instability and oscillations. If a larger capacitive load is required, a buffer stage or a dedicated op-amp with higher capacitive drive capability should be used.
To ensure the OPA660AP is operating within its SOA, the output current should be limited to 30mA or less, and the output voltage should be kept within the recommended range of -11V to 11V. Additionally, the junction temperature should be kept below 150°C to prevent thermal shutdown.
A 0.1uF ceramic capacitor should be placed close to the power pins of the OPA660AP to decouple the power supply. Additionally, a 10uF tantalum or electrolytic capacitor can be added in parallel to further reduce power supply noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA660AP Overview

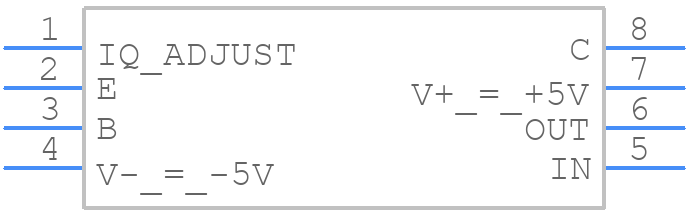

Use the download button to access the OPA660AP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA66,
or try a keyword search, such as Other Analog ICs
