Texas Instruments recommends a layout that minimizes parasitic capacitance and inductance, with a solid ground plane and short traces. A 4-layer PCB with a dedicated analog ground plane is recommended. See the TI application note 'AN-202' for more details.
The output filter should be chosen based on the desired frequency response and noise rejection. A 2nd-order Butterworth filter with a cutoff frequency of 10-20 times the signal bandwidth is a good starting point. The filter components should be chosen to minimize parasitic effects and ensure stability.
The maximum power dissipation of OPA680P is dependent on the ambient temperature and the thermal resistance of the package. For the DIP package, the maximum power dissipation is 1.4W at 25°C ambient temperature. For the SOIC package, it is 1.1W. See the datasheet for more details.
Yes, OPA680P can be used as a unity-gain buffer, but it's not the recommended configuration. The op-amp is optimized for high-gain applications, and using it as a unity-gain buffer may result in reduced stability and increased noise. If a unity-gain buffer is required, consider using a different op-amp, such as the OPA827.
To ensure stability, ensure that the circuit meets the recommended gain and phase margin requirements. A minimum gain of 5 is recommended, and the phase margin should be at least 45°. Additionally, ensure that the output is properly terminated, and the input is properly biased.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA680P Overview

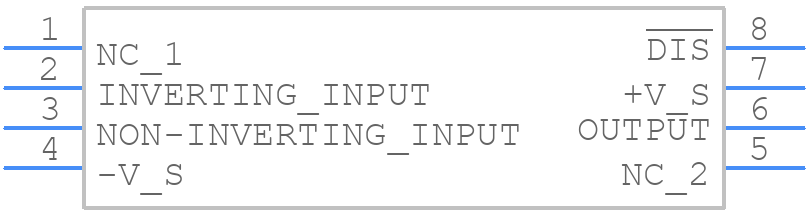

Use the download button to access the OPA680P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA68,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
