Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and separate, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated ground plane is recommended.
The output filter should be chosen based on the specific application requirements. A simple RC filter can be used to reduce noise and oscillations, while a more complex filter like a 2nd-order Butterworth filter may be needed for more demanding applications. The filter components should be chosen to ensure stability and minimize phase shift.
The maximum power dissipation of OPA683IDBVR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated for higher temperatures and should be calculated based on the specific application conditions.
Yes, OPA683IDBVR is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's essential to ensure that the device is properly heatsinked and that the power dissipation is within the recommended limits to prevent thermal shutdown or damage.
Oscillations or instability issues with OPA683IDBVR can be caused by a variety of factors, including layout issues, component selection, or incorrect pin connections. To troubleshoot, check the PCB layout for parasitic inductance and capacitance, ensure that the input and output traces are properly terminated, and verify that the power supply is stable and well-regulated. Additionally, check the device's pin connections and ensure that they are correct and not swapped.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA683IDBVR Overview

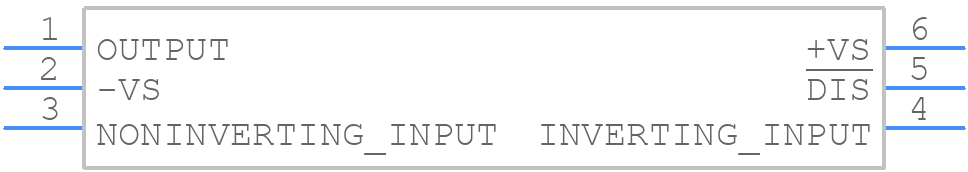

Use the download button to access the OPA683IDBVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA68,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
