Texas Instruments recommends a layout with a symmetrical, star-grounded configuration, with the op-amp inputs and outputs routed away from noise sources and high-current paths. A solid ground plane and decoupling capacitors close to the op-amp are also recommended.
The gain resistors should be chosen based on the desired gain, bandwidth, and noise requirements. A good starting point is to use the recommended values in the datasheet, and then adjust them based on simulation and measurement results. It's also important to consider the resistor tolerance, temperature coefficient, and parasitic capacitance.
The OPA683IDR can drive capacitive loads up to 1nF, but it's recommended to limit the load capacitance to 100pF or less to ensure stability and prevent oscillations. If a larger capacitive load is required, a series resistor or a buffer stage may be necessary.
To reduce noise and EMI, use a low-noise power supply, decouple the op-amp with capacitors, and use a shielded enclosure or a metal can package. Additionally, route the signal traces away from noise sources, use differential signaling, and consider adding EMI filters or common-mode chokes.
The thermal derating of OPA683IDR is typically 10mW/°C above 25°C. This means that the maximum power dissipation decreases as the ambient temperature increases. For example, at 50°C, the maximum power dissipation would be reduced to 50% of the maximum value at 25°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA683IDR Overview

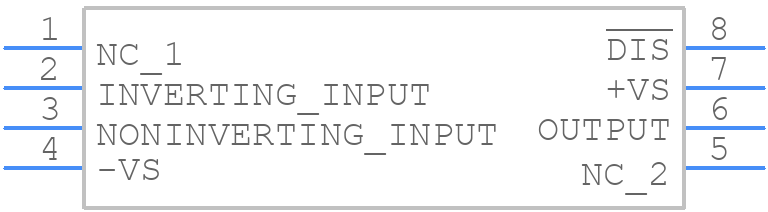

Use the download button to access the OPA683IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA68,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
