A good PCB layout for OPA692ID involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability in high-gain configurations, use a compensation capacitor (e.g., 10-22pF) between the output and the inverting input. Additionally, ensure that the gain-setting resistors are of high quality and have low parasitic inductance.
The maximum power dissipation of OPA692ID is 1.4W. To calculate power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, OPA692ID can be used in a single-supply configuration. To do so, connect the negative supply pin to a voltage divider that sets the midpoint of the supply voltage, and use a voltage reference (e.g., TLV7031) to generate a virtual ground. Ensure that the input signal is referenced to this virtual ground.
To protect OPA692ID from overvoltage and ESD, use a voltage clamp (e.g., TVS diode) on the input pins, and ensure that the device is handled and stored in an ESD-protected environment. Follow proper PCB design and assembly practices to minimize ESD risks.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA692ID Overview

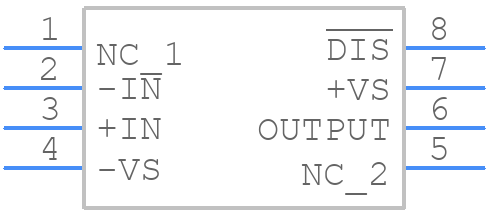

Use the download button to access the OPA692ID schematic symbol, PCB footprint, and 3D model.
