A good PCB layout for OPA699ID involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability, ensure that the circuit is properly compensated, and the gain and phase margins are sufficient. Also, avoid capacitive loads, and use a low-ESR capacitor for decoupling. Additionally, consider adding a series resistor to the output to improve stability.
The maximum power dissipation of OPA699ID is dependent on the ambient temperature and the thermal resistance of the package. Use the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance. Consult the datasheet for specific values.
OPA699ID is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Consider using a heat sink or a thermally-enhanced package, and ensure proper thermal management to maintain a safe operating temperature.
To protect OPA699ID from EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite beads on the input and output lines. Additionally, consider using a low-pass filter or a shielding material around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA699ID Overview

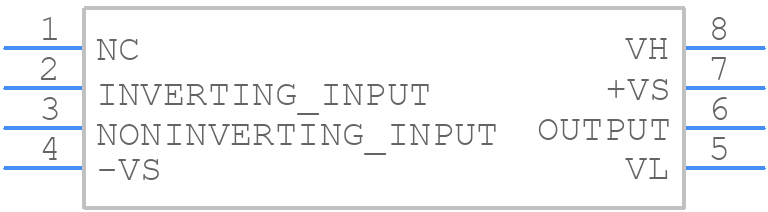

Use the download button to access the OPA699ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA69,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
