OPA817DTKR - Texas Instruments

Description: Operational Amplifiers - Op Amps 800-MHz, high-precision unity-gain-stable FET-input operational amplifier

Download OPA817DTKR Model

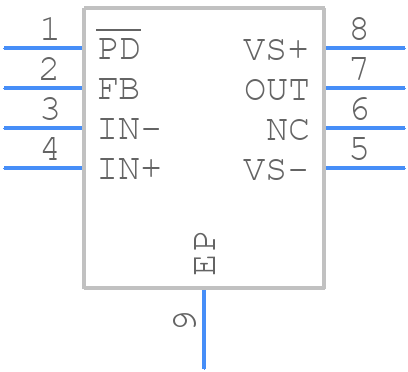

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA817DTKR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DTK0008A
click to zoom
3D Models
OPA817DTKR - Texas Instruments  - 3D model - Small Outline No-lead - DTK0008A
click to zoom

OPA817DTKR Details

  • Manufacturer Part Number:

    OPA817DTKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Bias Current-Max (IIB) @25C:

    0.00002 µA

  • Common-mode Reject Ratio-Min:

    95 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    250 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -6.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    1000 V/us

  • Supply Current-Max:

    24.5 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    390000

  • Voltage Gain-Min:

    2818.382

  • Wideband:

    NO

  • Width:

    3 mm

OPA817DTKR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a layout with a symmetrical, star-grounded configuration, with the op-amp inputs and outputs routed away from noise sources and high-current paths. A dedicated analog ground plane and careful component placement can also help minimize noise and electromagnetic interference (EMI).
  • To ensure stability, ensure that the op-amp is operated within its recommended frequency range, and that the gain and phase margins are sufficient. Additionally, use a compensation capacitor (if required), and ensure that the output is properly terminated. Avoid using long, unshielded cables and minimize parasitic capacitance and inductance in the circuit.
  • The maximum power dissipation of OPA817DTKR is dependent on the ambient temperature and the package thermal resistance. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance. Ensure that the calculated power dissipation is within the recommended limits to prevent overheating and damage to the device.
  • Yes, OPA817DTKR can be used in high-temperature environments, but its performance and reliability may be affected. The device is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. At higher temperatures, the device's offset voltage, gain, and bandwidth may degrade, and the risk of thermal shutdown or damage increases. Ensure that the device is properly heat-sinked and that the operating conditions are within the recommended specifications.
  • To protect OPA817DTKR from EMI and RFI, use a shielded enclosure, and ensure that the PCB layout is designed to minimize radiation and susceptibility. Use bypass capacitors to filter out high-frequency noise, and consider using a common-mode choke or ferrite bead to filter out differential-mode noise. Additionally, ensure that the op-amp inputs are properly terminated and that the circuit is designed to minimize electromagnetic radiation.
