Part Image

OPT101P - Texas Instruments

Description: Texas Instruments OPT101P Infrared Photodetector Amplifier, Through Hole PDIP Package

Download OPT101P Model

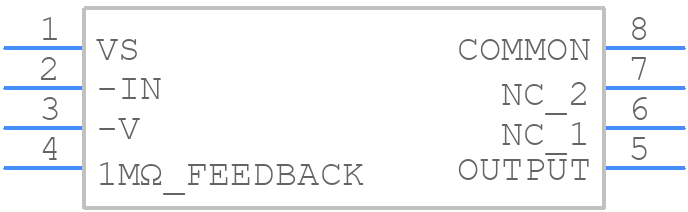

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPT101P - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NTC (R-PDIP-T8) -
click to zoom
3D Models
OPT101P - Texas Instruments  - 3D model - Dual-In-Line Packages - NTC (R-PDIP-T8) -
click to zoom

OPT101P Details

  • Manufacturer Part Number:

    OPT101P

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Application:

    AMPLIFIER

  • Configuration:

    SINGLE

  • Infrared Range:

    NO

  • JESD-609 Code:

    e4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LINEAR OUTPUT PHOTO IC

  • Packing Method:

    TUBE

  • Shape:

    SQUARE

  • Size:

    2.29 mm

  • Supply Voltage-Min:

    2.7 V

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Pitch:

    2.54 mm

OPT101P Frequently Asked Questions (FAQs)

  • A good PCB layout for the OPT101P involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the analog-to-digital converter (ADC) to minimize noise. Additionally, using a ground plane and shielding the device from digital signals can help reduce electromagnetic interference (EMI).
  • Calibration of the OPT101P involves adjusting the zero-point and span of the device to match the specific application requirements. This can be done by applying a known input voltage and adjusting the offset and gain of the device to achieve the desired output. It's recommended to follow the calibration procedure outlined in the datasheet or application notes.
  • The OPT101P can handle input voltages up to ±40V without damage. However, it's recommended to limit the input voltage to ±10V to ensure accurate readings and prevent damage to the device.
  • The OPT101P is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the device's accuracy and linearity may degrade at higher temperatures, so it's essential to consider the temperature coefficient of the device when designing the application.
  • To ensure EMC when using the OPT101P, it's essential to follow proper PCB layout and design practices, such as using a ground plane, shielding the device, and minimizing loop areas. Additionally, using a common-mode filter or a ferrite bead can help reduce electromagnetic interference (EMI).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OPT101P Overview

Use the download button to access the OPT101P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPT10, or try a keyword search, such as Optocoupler

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
