OR3T55-7BA256 - Lattice Semiconductor

OR3T55-7BA256 Details

• Manufacturer Part Number:

  OR3T55-7BA256

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

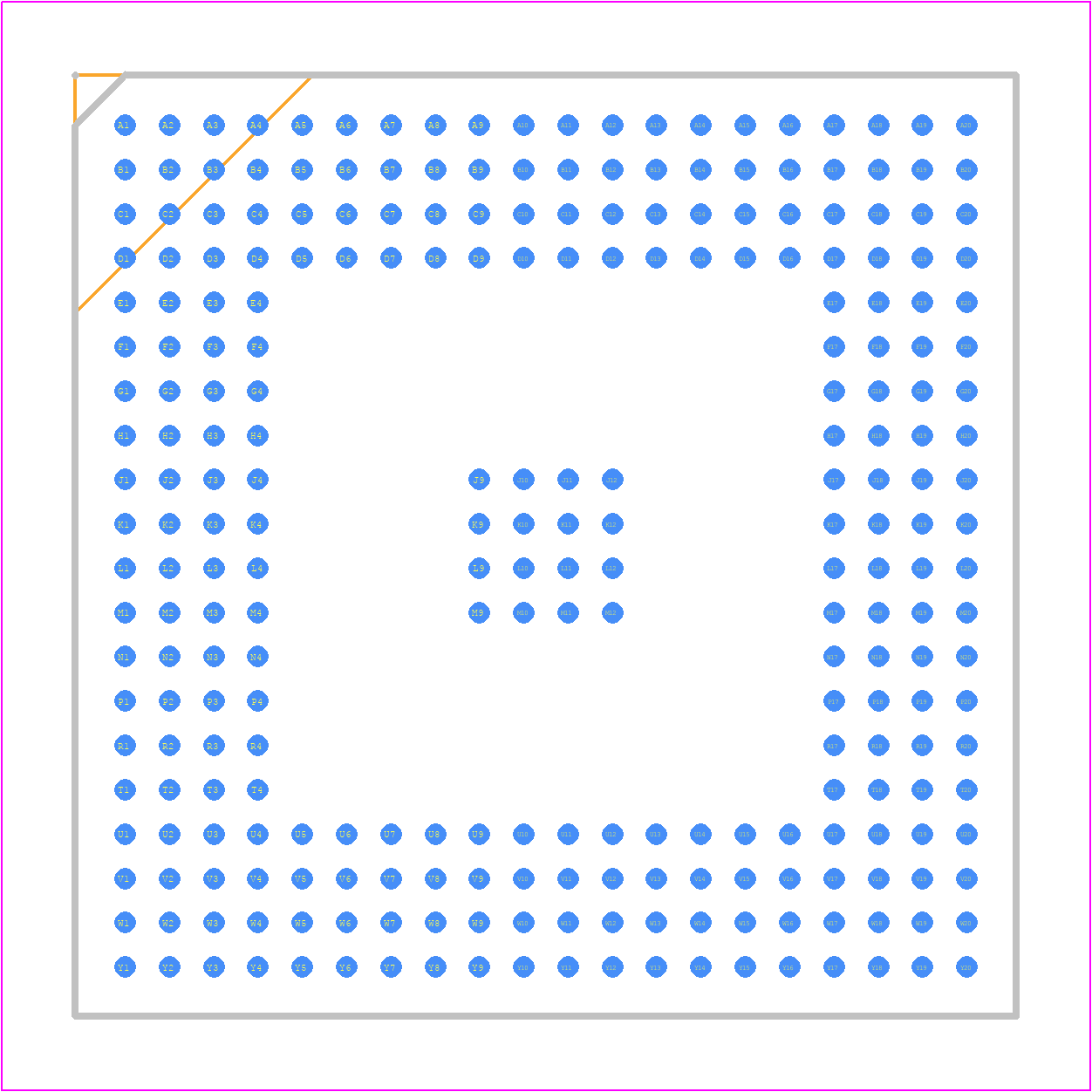

• Package Description:

  BGA-256

• HTS Code:

  8542.31.00.60

• Manufacturer:

  Lattice Semiconductor Corporation

• YTEOL:

  0

• Combinatorial Delay of a CLB-Max:

  1.05 ns

• JESD-30 Code:

  S-PBGA-B256

• Length:

  27 mm

• Moisture Sensitivity Level:

  1

• Number of Equivalent Gates:

  80000

• Number of Inputs:

  219

• Number of Logic Cells:

  2592

• Number of Outputs:

  219

• Number of Terminals:

  256

• Operating Temperature-Max:

  70 °C

• Organization:

  324 CLBS, 8000 GATES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA256,20X20,50

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.32 mm

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Width:

  27 mm
