P82B96P - Texas Instruments

Description: Texas Instruments P82B96P, Dual Bus Buffer, 270ns 3mA, 2 → 15 V, 8-Pin PDIP

Download P82B96P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

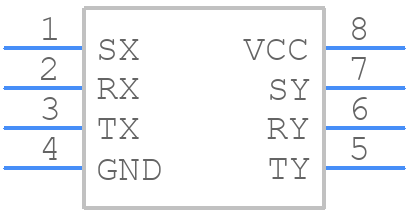

Symbol
P82B96P - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
P82B96P - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TL071CPE4
click to zoom
3D Models
P82B96P - Texas Instruments - 3D model - Dual-In-Line Packages - TL071CPE4
click to zoom

P82B96P Details

  • Manufacturer Part Number:

    P82B96P

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    BUS BUFFERS

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

P82B96P Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and crosstalk.
  • Use a thermally conductive material for the heat sink, ensure good airflow, and avoid overheating the device. Also, consider using a thermal interface material to improve heat transfer.
  • Use a pi-filter or a common-mode choke at the input to reduce EMI and noise. For the output, use a low-pass filter or a ferrite bead to reduce high-frequency noise and ringing.
  • Use a low-ESR output capacitor and a high-current rating for the output traces and components. Also, consider using a current-sensing resistor to monitor the output current.
  • Ensure proper heat sinking, use a heat spreader, and consider using a fan or other cooling methods to keep the device within the recommended operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

P82B96P Overview

Use the download button to access the P82B96P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P82B9, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
