Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including temperature, voltage, and current ratings. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
Using a different voltage regulator or power supply may affect the performance and stability of the P87702DRHBRQ1. Ensure that the chosen regulator or power supply meets the recommended voltage and current requirements, and consider the output noise, ripple, and transient response to avoid affecting the device's operation.
To troubleshoot issues, start by reviewing the datasheet and application notes, and then use debugging tools, such as oscilloscopes or logic analyzers, to identify the root cause. Check for proper power supply, clock signal integrity, and signal routing. If necessary, consult with Texas Instruments' support resources or seek assistance from experienced engineers.
Yes, the P87702DRHBRQ1 is susceptible to EMI and EMC issues. Follow good design practices, such as using shielding, filtering, and grounding techniques, to minimize electromagnetic interference. Ensure that the device is properly decoupled, and consider using EMI filters or common-mode chokes to reduce noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
P87702DRHBRQ1 Overview

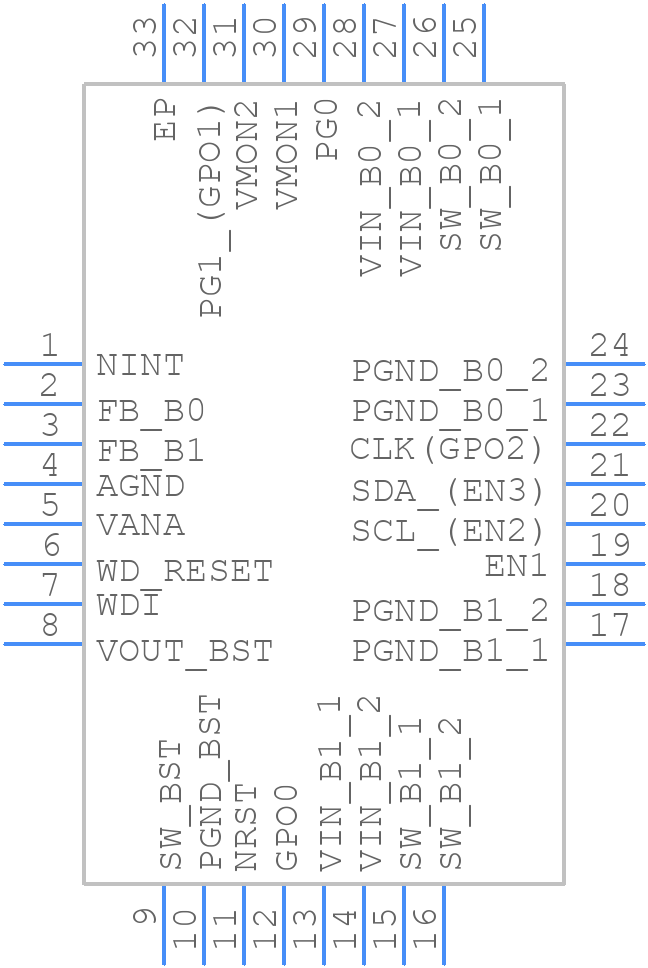

Use the download button to access the P87702DRHBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P8770,
or try a keyword search, such as Switching Regulator or Controllers
