P9148NRGI8 - Renesas Electronics

Description: Flexible output current capabilities are key to address modern multi core SoC solutions with a variety of different skews. The IDT P9148 distributed power units (DPU) operate as additional phases to the P9180A PMIC and P9145 PMIC to increase the output current of the solution. The device works as a controlled current source fully controlled by the host PMIC. Multiple P9148 devices may be used in parallel to provide additional current to the load. A high-speed proprietary interface between the P9180A,  P9145

Download P9148NRGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

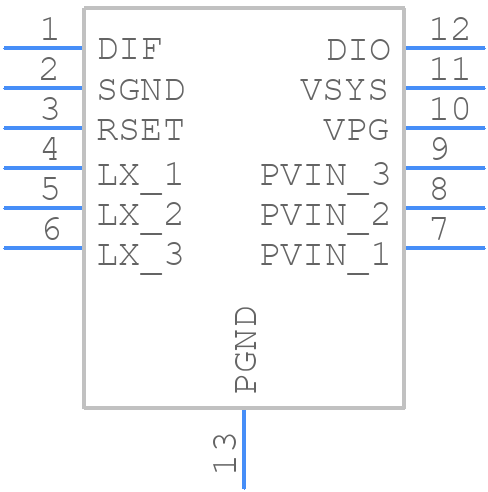

P9148NRGI8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
P9148NRGI8 - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 3.0 x4.0 x0.90 mm 12-DFN
click to zoom
3D Models
P9148NRGI8 - Renesas Electronics - 3D model - Small Outline No-lead - 3.0 x4.0 x0.90 mm 12-DFN
click to zoom

P9148NRGI8 Details

  • Manufacturer Part Number:

    P9148NRGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Pin Count:

    12

  • Manufacturer Package Code:

    NRG12S1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

P9148NRGI8 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the P9148NRGI8 is -40°C to 105°C.
  • The P9148NRGI8 requires a 1.8V to 3.3V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a stable voltage supply.
  • The maximum current consumption of the P9148NRGI8 is approximately 10mA, but this can vary depending on the operating frequency and other factors.
  • The P9148NRGI8 can be configured for I2C or SPI communication by setting the appropriate pins and registers. Refer to the datasheet and application notes for specific configuration details.
  • The internal voltage regulator in the P9148NRGI8 is used to generate a stable internal voltage supply for the device, allowing it to operate from a single external power supply.
