Description:450V, 200mA Power Amplifier with Low Standby Current, Low quiescent current – 3.0mA MAX, Programmable current limit, Package style FU 10‐Pin SIP w/ formed leads
Apex Microtechnology recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers. Additionally, a heat sink or thermal interface material can be used to further improve thermal performance.
To ensure reliable operation over the full temperature range, it is essential to follow proper PCB design and layout guidelines, and to ensure that the device is properly soldered and mounted. Additionally, the device should be operated within the recommended voltage and current ranges, and adequate thermal management should be implemented.
Apex Microtechnology recommends using a 4-wire Kelvin connection method for accurate voltage and current measurements. A high-frequency oscilloscope and a current probe can be used to measure the device's output voltage and current waveforms. Additionally, a load pull test can be used to characterize the device's performance under various load conditions.
To prevent oscillation and instability, it is essential to follow proper PCB design and layout guidelines, and to ensure that the device is properly decoupled and bypassed. Additionally, the device's input and output should be properly terminated, and the device should be operated within the recommended voltage and current ranges.
Apex Microtechnology recommends following standard ESD protection and handling procedures, including the use of ESD-safe workstations, wrist straps, and packaging materials. The device should be handled by the body only, and not by the leads. Additionally, the device should be stored in a dry, cool place, away from direct sunlight and moisture.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PA15FU Overview

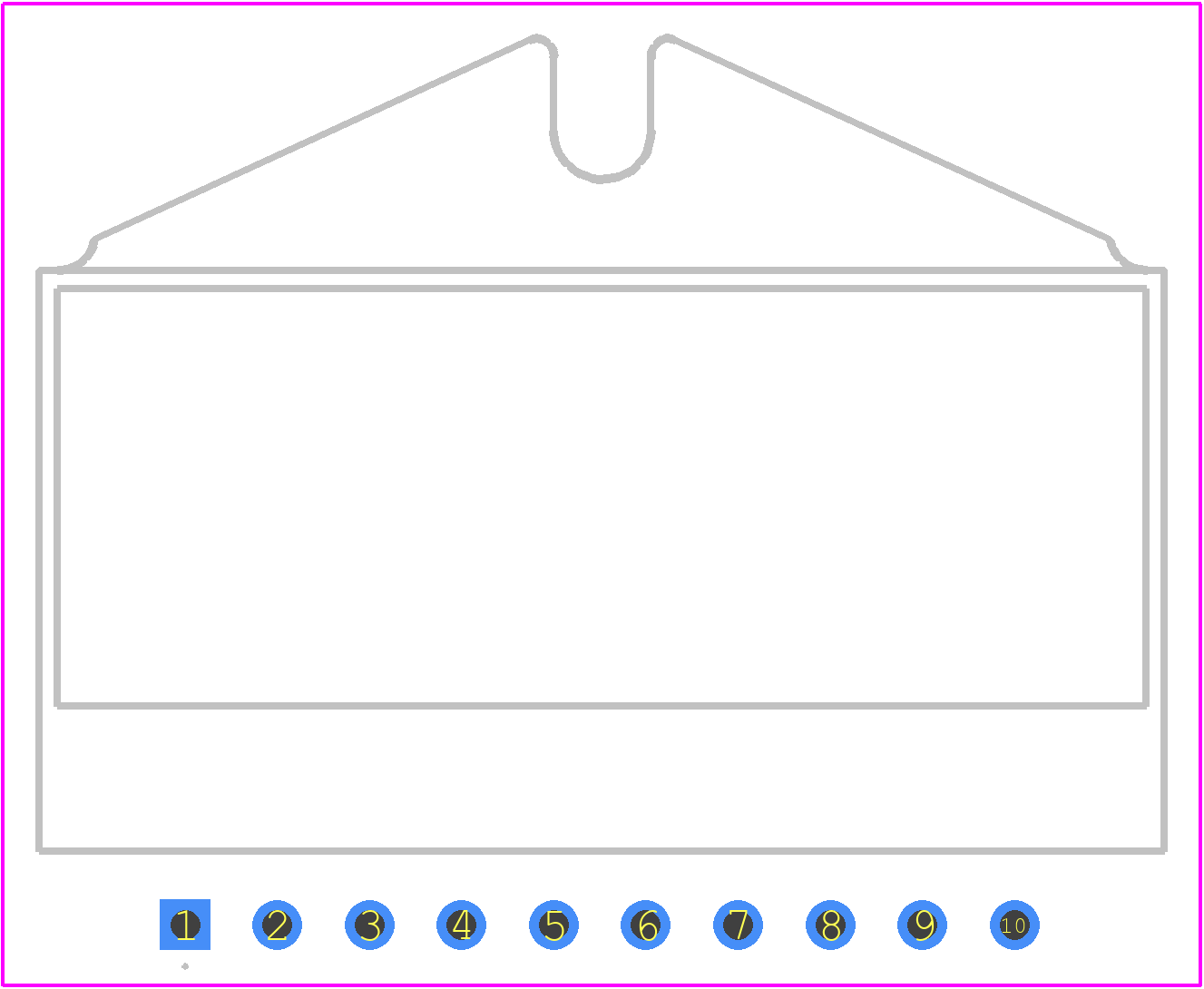

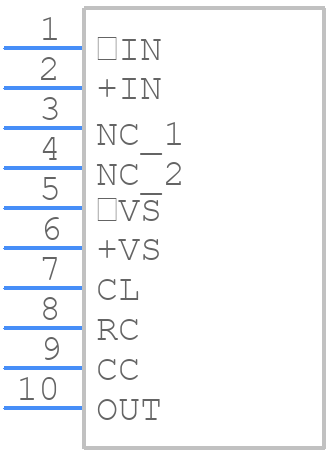

Use the download button to access the PA15FU schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PA15F,
or try a keyword search, such as Operational Amplifiers
