Description:The PA340CC is a low cost, high voltage power amplifier. This IC is a MOSFET operational amplifier that achieves performance features previously found only in hybrid designs while increasing reliability. Inputs are protected from excessive common mode and differential mode voltages. The safe operating area (SOA) has no second breakdown limitations. External compensation provides the user flexibility in choosing optimum gain and bandwidth for the application. The surface mount package of the PA340CC is an in
A good PCB layout for the PA340CC involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. Apex Microtechnology provides a recommended PCB layout in their application notes.
To protect the PA340CC from overvoltage and overcurrent, use voltage regulators and current limiters in the power supply lines. Additionally, consider adding overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage to the device.
The PA340CC has a high power density, so thermal management is crucial. Use a heat sink with a thermal interface material, and ensure good airflow around the device. Apex Microtechnology recommends a maximum junction temperature of 150°C.
Yes, the PA340CC can be used in switching applications, but it's essential to ensure that the device is operated within its safe operating area (SOA). Apex Microtechnology provides guidance on switching applications in their application notes.
Common issues with the PA340CC include overheating, oscillation, and output stage failure. To troubleshoot, check the power supply, input and output impedance, and PCB layout. Consult Apex Microtechnology's application notes and technical support for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PA340CC Overview

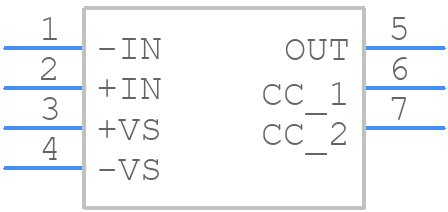

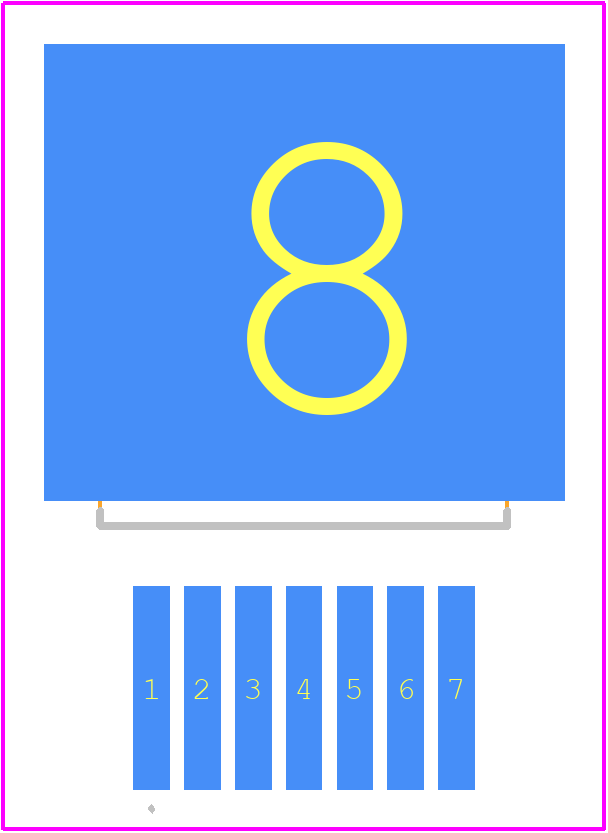

Use the download button to access the PA340CC schematic symbol, PCB footprint, and 3D model.
