A good PCB layout should ensure minimal parasitic inductance and capacitance. Use a 4-layer board with a solid ground plane, and place the amplifier close to the power supply. Thermal management is crucial; use a heat sink with a thermal interface material, and ensure good airflow around the device.
To maximize power handling, ensure the output stage is properly biased, and the load impedance is matched to the amplifier's output impedance. Use a low-ESR output capacitor, and consider adding a snubber circuit to reduce ringing and oscillations.
To prevent oscillations, ensure the amplifier is properly compensated, and the feedback network is optimized. Use a low-pass filter in the feedback loop, and consider adding a resistor in series with the feedback capacitor to reduce the Q factor.
To minimize EMI and EMC issues, use a shielded enclosure, and ensure the amplifier is properly grounded. Use a common-mode choke or ferrite beads to filter the input and output lines, and consider adding EMI filters or shielding to the PCB.
Use a high-impedance probe or a differential probe to measure the output voltage and current. Use a spectrum analyzer to measure the frequency response, and a distortion analyzer to measure THD+N. Ensure the test setup is properly calibrated and configured for the amplifier's specific requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

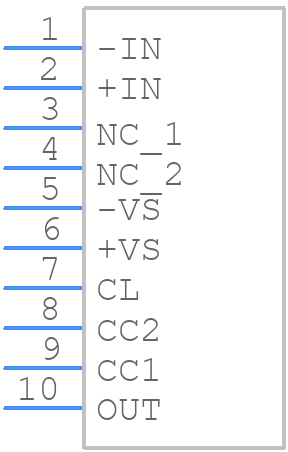

PA341DW Overview
