PA75CD - Apex Microtechnology

Description: The PA75 is a single chip, dual power operational amplifier capable of 2.5A of continuous output current on 5V to 40V single supplies. The IC design of the PA75 utilizes a dual power amplifier on a single monolithic die. Side B of the chip is configured as a unity gain buffer to increase the current capability of the side A “master”. Two PA75 amplifiers can be used to provide a cost effective solution for applications where multiple amplifiers are required or a bridge configuration is needed. Very low harmo

Download PA75CD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

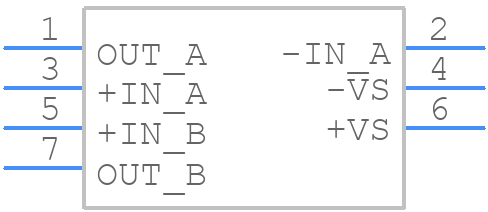

Symbol
PA75CD - Apex Microtechnology - PCB symbol
click to zoom
PCB Footprints
PA75CD - Apex Microtechnology PCB footprint - Other - Other - PA75CD
click to zoom
3D Models
PA75CD - Apex Microtechnology - 3D model - Other - PA75CD
click to zoom

PA75CD Details

  • Manufacturer Part Number:

    PA75CD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SFM

  • Pin Count:

    3

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Apex Microtechnology Inc

  • YTEOL:

    5.05

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    15000 µV

  • JESD-30 Code:

    R-PSFM-T7

  • JESD-609 Code:

    e3

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Number of Functions:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SIP7,.1,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Slew Rate-Min:

    1 V/us

  • Slew Rate-Nom:

    1.4 V/us

  • Supply Current-Max:

    10 mA

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    30 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Unity Gain BW-Nom:

    1400

  • Voltage Gain-Min:

    28000

  • Wideband:

    NO

PA75CD Frequently Asked Questions (FAQs)

  • A good PCB layout for the PA75CD should minimize parasitic inductance and capacitance. Use a solid ground plane, keep signal traces short and wide, and avoid vias under the device. Apex Microtechnology provides a recommended PCB layout in their application notes.
  • To ensure stability, follow the recommended compensation network and component values. Additionally, ensure that the output stage is properly bypassed, and the input stage is properly terminated. Apex Microtechnology provides a stability analysis in their application notes.
  • The maximum safe operating area (SOA) for the PA75CD is defined by the maximum voltage and current ratings. The device can operate safely up to 100V and 10A, but derating is required for high-temperature operation. Consult the datasheet for detailed SOA information.
  • Use voltage and current limiting circuits to protect the PA75CD from overvoltage and overcurrent conditions. Apex Microtechnology recommends using a voltage clamp and a current sense resistor to prevent damage.
  • The thermal derating curve for the PA75CD is provided in the datasheet. The device can operate up to 150°C, but derating is required above 125°C. Consult the datasheet for detailed thermal derating information.
