Description:The PA79 is a dual 350V power operational amplifier with a novel input stage that provides extremely high slew rates in pulse applications while maintaining low quiescent current of under 2.5mA. This novel input stage also has the effect of adding variables to the power response and slew rate characteristics of the amplifier. The output stages for this amplifier are well protected with user defined current limit. External phase compensation provides the user with great flexibility in trading gain, stabilit
A good PCB layout for the PA79DK involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output impedance is matched to the load, and the input impedance is matched to the source. Also, use a compensation capacitor (e.g., 10nF) between the output and the inverting input to prevent oscillations.
The maximum power dissipation for the PA79DK is 2.5W. Ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range to prevent overheating.
Yes, the PA79DK can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source, and the output impedance is matched to the load to prevent signal degradation.
Use voltage clamps or transient voltage suppressors (TVS) to protect the PA79DK from overvoltage. For ESD protection, use ESD diodes or ESD-protected ICs in the signal path. Ensure that the PCB design includes ESD protection measures, such as ESD-protection diodes and resistors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PA79DK Overview

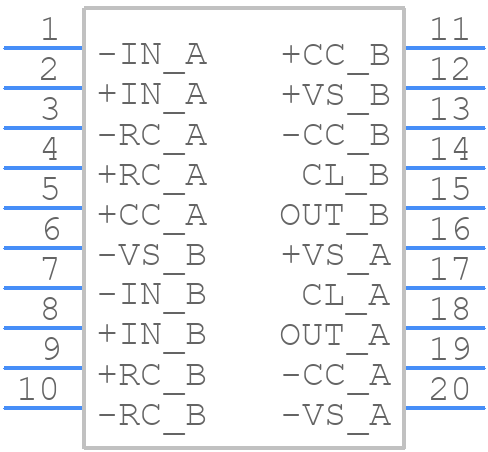

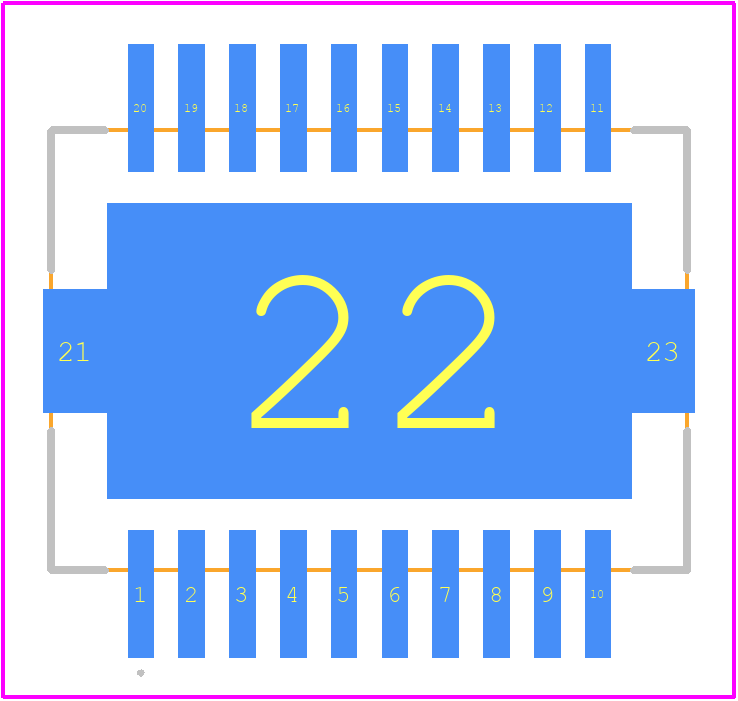

Use the download button to access the PA79DK schematic symbol, PCB footprint, and 3D model.
