PA90EE - Apex Microtechnology

Description: Operational Amplifiers - Op Amps Linear OpAmp, 400V, 0.2A

Download PA90EE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

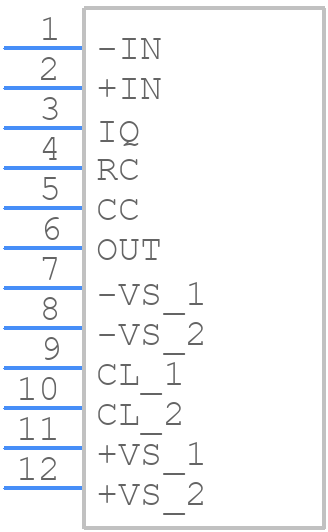

PA90EE - Apex Microtechnology - PCB symbol
click to zoom
PCB Footprints

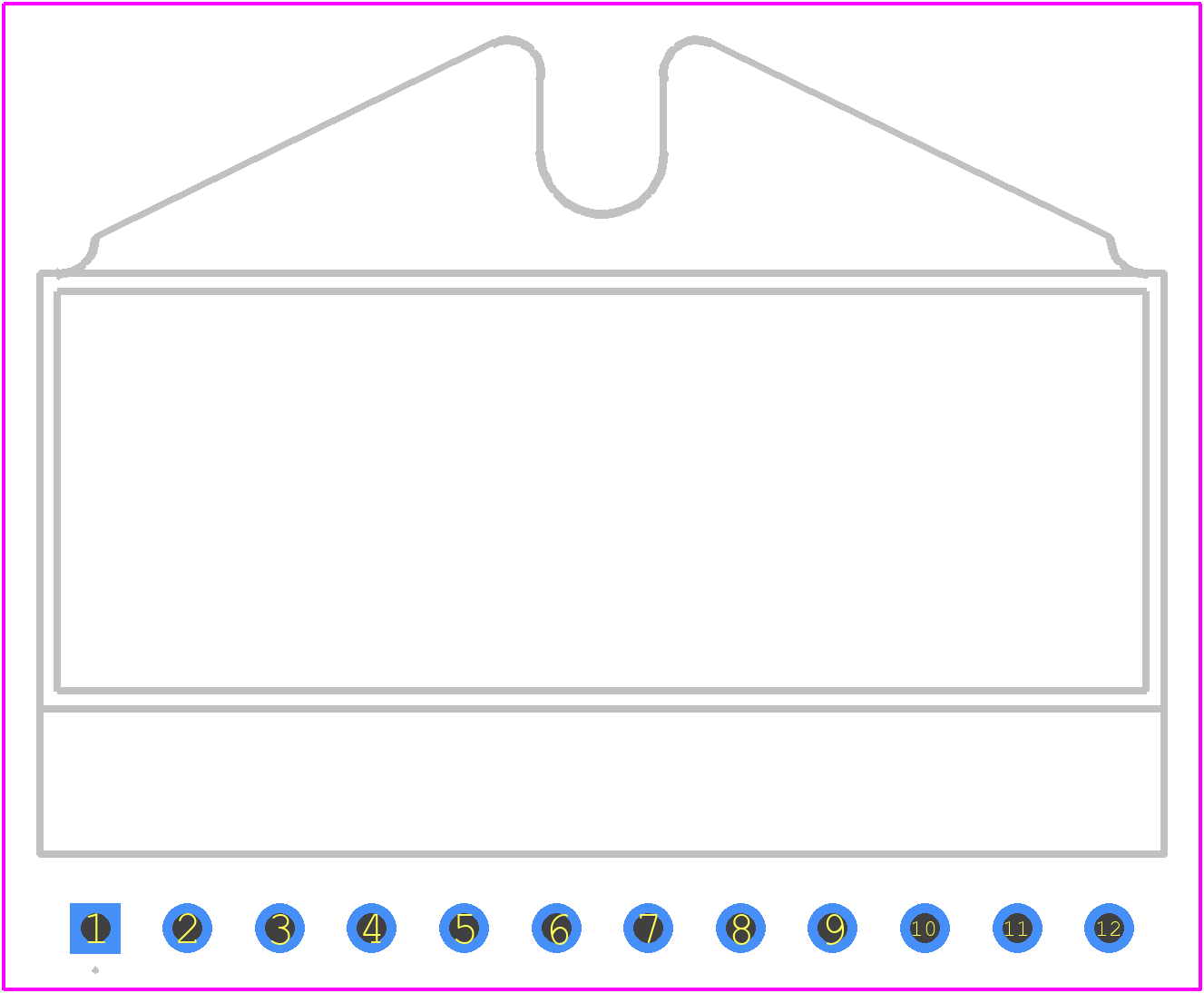

PA90EE - Apex Microtechnology PCB footprint - Other - Other - PA90EE-1
click to zoom
3D Models
PA90EE - Apex Microtechnology - 3D model - Other - PA90EE-1
click to zoom

PA90EE Details

  • Manufacturer Part Number:

    PA90EE

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SIP

  • Package Description:

    ROHS COMPLIANT, POWER, SIP-12

  • Pin Count:

    12

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Apex Microtechnology Inc

  • YTEOL:

    4.72

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.002 µA

  • Common-mode Reject Ratio-Nom:

    98 dB

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    R-PSIP-T12

  • JESD-609 Code:

    e3

  • Neg Supply Voltage Limit-Max:

    -200 V

  • Neg Supply Voltage-Nom (Vsup):

    -150 V

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Slew Rate-Nom:

    300 V/us

  • Supply Voltage Limit-Max:

    200 V

  • Supply Voltage-Nom (Vsup):

    150 V

  • Surface Mount:

    NO

  • Technology:

    MOS

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Unity Gain BW-Nom:

    100000

PA90EE Frequently Asked Questions (FAQs)

  • Apex Microtechnology recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A heat sink or thermal pad can also be used to improve thermal performance.
  • Use a voltage regulator or a voltage limiter to prevent overvoltage. Add a current sense resistor and a fuse or a current limiter to prevent overcurrent. Also, ensure that the input and output capacitors are rated for the maximum voltage and current.
  • Use a pi-filter or a LC-filter at the input and output to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI). The filter components should be chosen based on the specific application and frequency range.
  • Ensure that the input and output impedance matching is correct, and the feedback loop is properly compensated. Add a resistor-capacitor (RC) snubber network at the output to prevent oscillations. Also, ensure that the layout is symmetrical and the ground plane is solid.
  • The maximum SOA for the PA90EE is typically defined by the voltage and current ratings. However, it's recommended to derate the device by 10-20% to ensure reliable operation. Consult the datasheet and application notes for more information.
