- Part Number PAC5223QM
- Manufacturer Qorvo
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - PAC5223QM
- Released Date Feb 7, 2024
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
PAC5223QM Details
-
Manufacturer Part Number:
PAC5223QM
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
TQFN-48
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
14 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7
-
Adjustable Threshold:
NO
PAC5223QM Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
-
Use a pi-filter or LC filter with a cutoff frequency above 100 kHz to minimize EMI and ensure compliance with regulatory standards. The output filter should be designed to match the output impedance of the device.
-
A 10-22 μF input capacitance is recommended to ensure stable operation and minimize input ripple. The capacitor should be placed close to the VIN pin to reduce noise and EMI.
-
Use a soft-start circuit or a voltage supervisor to ensure a controlled start-up and shutdown sequence. This prevents damage to the device and ensures reliable operation.
-
The maximum allowed voltage on the EN pin is 5.5V. Exceeding this voltage may damage the device. A voltage divider or level shifter may be required if the EN pin is driven from a higher voltage source.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
PAC5223QM Overview

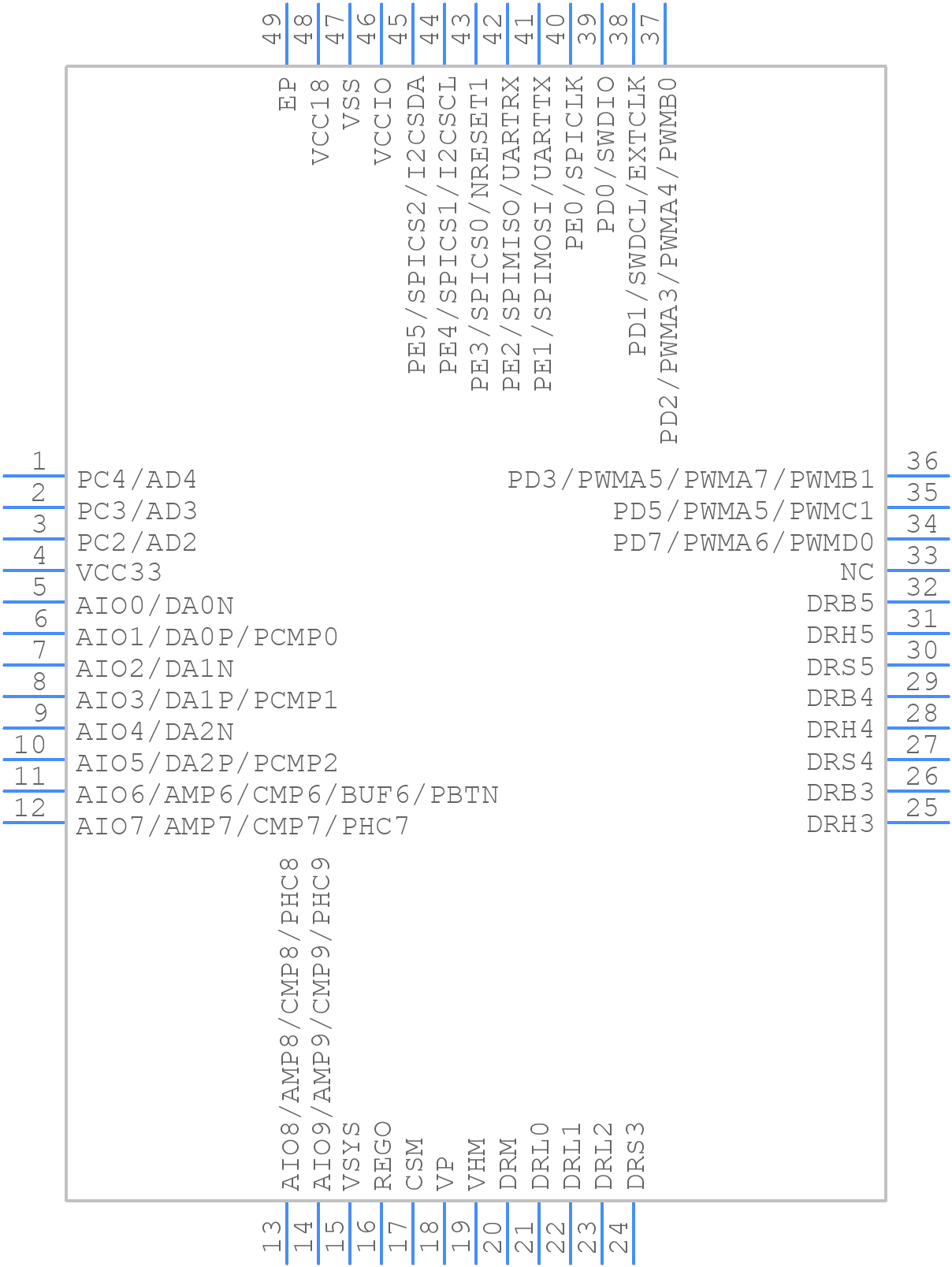

Use the download button to access the PAC5223QM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAC52,
or try a keyword search, such as Power Management Circuits
