- Part Number PAC5225QM-T
- Manufacturer Qorvo
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - TQFN66-48
- Released Date Dec 18, 2024
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
PAC5225QM-T Details
-
Manufacturer Part Number:
PAC5225QM-T
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
14 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
8
-
Analog IC - Other Type:
VOLTAGE SUPERVISOR/RESET IC
PAC5225QM-T Frequently Asked Questions (FAQs)
-
Qorvo recommends a 4-layer PCB with a solid ground plane on the bottom layer, and thermal vias connecting the exposed pad to the ground plane. This helps to dissipate heat efficiently and reduce thermal resistance.
-
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe junction temperature.
-
Although the datasheet doesn't specify a maximum voltage for the EN pin, Qorvo recommends limiting the voltage to 3.6V to prevent damage to the internal circuitry. Exceeding this voltage may cause permanent damage or affect the device's reliability.
-
While the PAC5225QM-T is designed to operate in a variety of environments, high humidity can still affect its performance and reliability. To mitigate this, consider using conformal coating, potting, or other environmental protection methods to prevent moisture ingress.
-
Qorvo recommends using a human-body model (HBM) ESD protection of at least 2 kV and a machine model (MM) ESD protection of at least 200 V to prevent damage from electrostatic discharge.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
PAC5225QM-T Overview

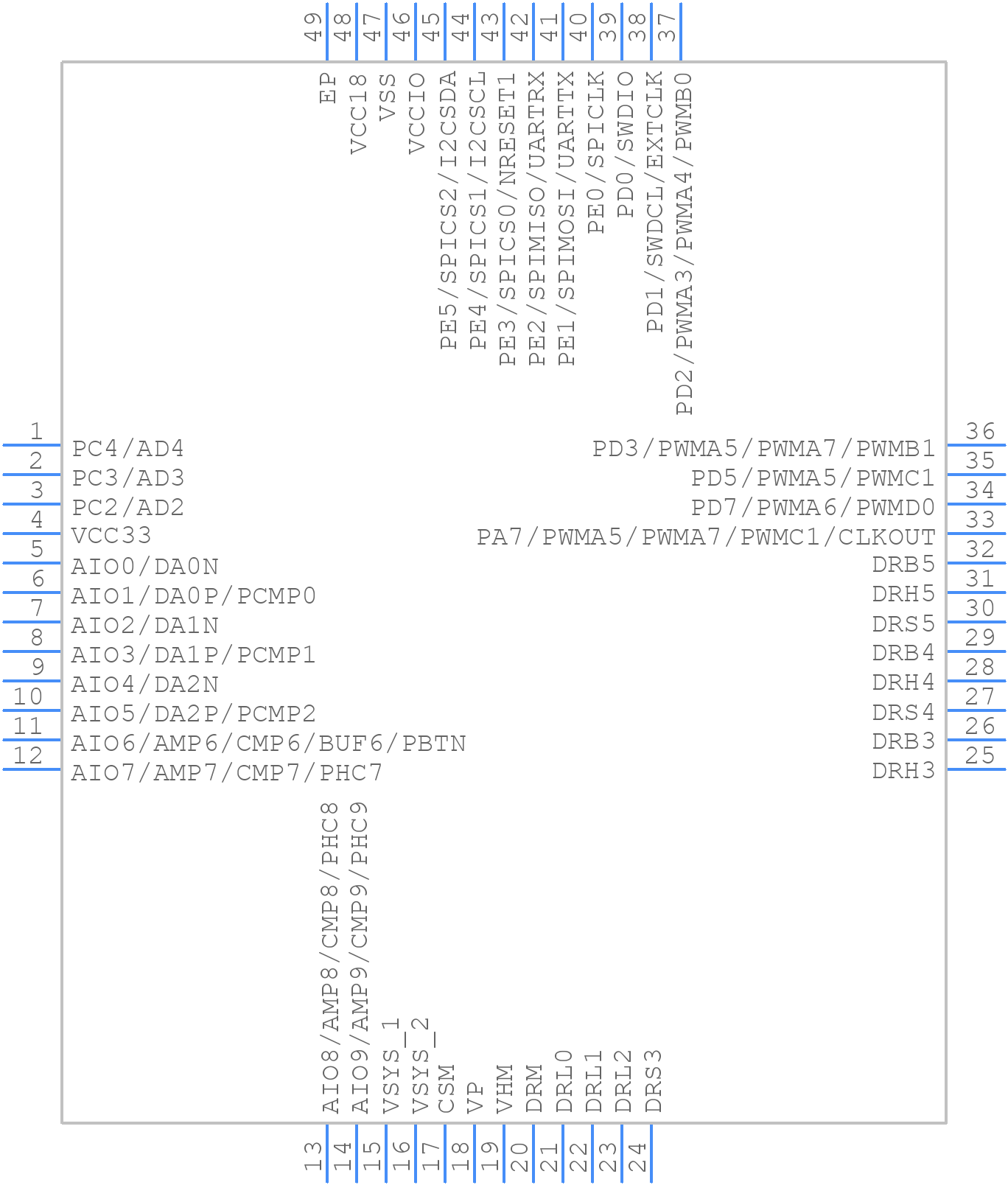

Use the download button to access the PAC5225QM-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAC52,
or try a keyword search, such as Power Management Circuits
