Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using vias to connect signals to the ground plane.
To ensure accuracy, it's essential to follow the recommended calibration procedure, use a high-precision voltage reference, and minimize noise and interference on the analog inputs. Additionally, consider using a low-pass filter to remove high-frequency noise and ensure the input signals are within the specified range.
The PADS122C04IPWR is rated for operation from -40°C to 125°C, but it's essential to consider the thermal design of the system to ensure the device remains within its specified operating temperature range.
While the PADS122C04IPWR is a robust device, it's still susceptible to vibration-induced errors. To mitigate this, consider using vibration-dampening materials, securing the PCB firmly, and ensuring the device is properly soldered to the board.
Start by reviewing the datasheet and application notes, then check the PCB layout, component values, and soldering quality. Use oscilloscopes and logic analyzers to debug the digital and analog signals. If issues persist, consider consulting with a Texas Instruments support engineer or a qualified design expert.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PADS122C04IPWR Overview

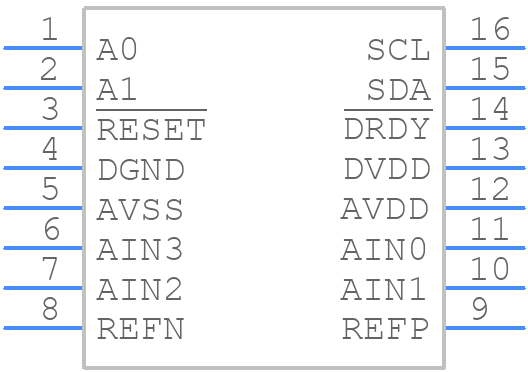

Use the download button to access the PADS122C04IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PADS1,
or try a keyword search, such as Analog to Digital Converters
