PAM8106TVR footprint, schematic symbol and 3D model by Diodes Incorporated

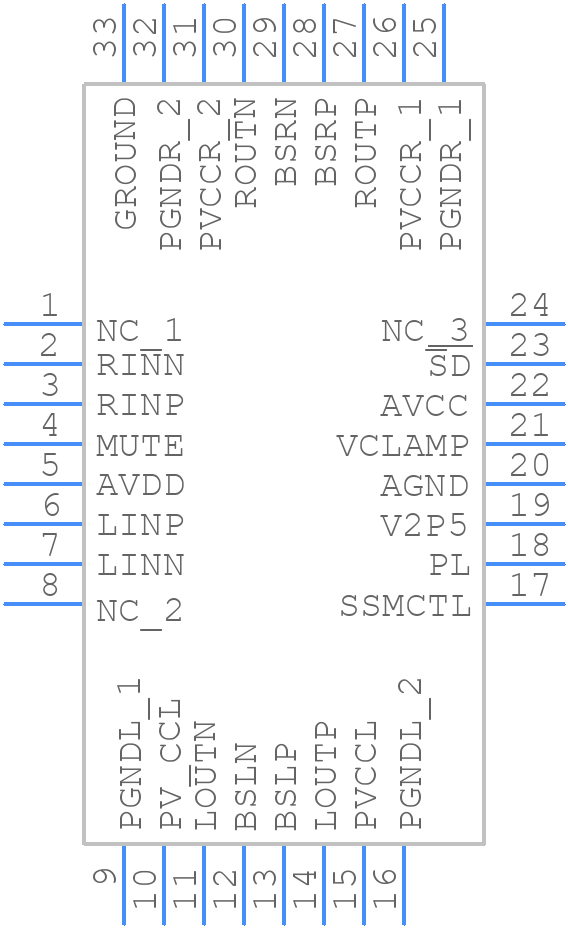

Symbol

click to zoom

PCB Footprints

PAM8106TVR - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - U-QFN5050-32

click to zoom

3D Models

PAM8106TVR - Diodes Incorporated - 3D model - Quad Flat No-Lead - U-QFN5050-32

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PAM8106TVR
Part Number PAM8106TVR
Manufacturer Diodes Incorporated
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - U-QFN5050-32
Released Date Dec 31, 2018
Last Modified Date Jun 25, 2024 8:07 AM UTC
Pinout / Pin List Click Here (Member Only)

PAM8106TVR Details

Manufacturer Part Number:
PAM8106TVR
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
WQFN-5050, 32 PIN
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Factory Lead Time:
16 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
0
Bandwidth-Nom:
22 kHz
Consumer IC Type:
CLASS D AUDIO AMPLIFIER
Gain:
32 dB
JESD-30 Code:
S-PQCC-N32
JESD-609 Code:
e3
Length:
5 mm
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Power-Nom:
10.4 W
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
15 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
5 mm

PAM8106TVR Frequently Asked Questions (FAQs)

A good PCB layout for the PAM8106TVR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF capacitance is recommended at the input and output.
The PAM8106TVR is rated for operation from -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
Yes, the PAM8106TVR is designed to meet the CISPR 25 Class 5 EMI standard. However, to ensure optimal EMI performance, follow the recommended PCB layout guidelines and use a shielded enclosure if necessary.
The recommended input voltage range for the PAM8106TVR is 6.5V to 18V. Operating the device outside of this range may affect its performance and reliability.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PAM8106TVR Overview

Use the download button to access the PAM8106TVR schematic symbol, PCB footprint, and 3D model.
