PAM8403DR - Diodes Incorporated

Description: Class-D Stereo Audio Amp 5V 2x3W SOP16 DiodesZetex PAM8403DR Audio Amplifier, Class-D Stereo, 16-Pin SOP

Download PAM8403DR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

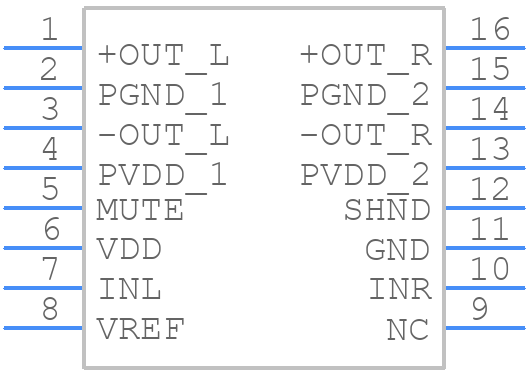

PAM8403DR - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PAM8403DR - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-16_2022
click to zoom
3D Models
PAM8403DR - Diodes Incorporated - 3D model - Small Outline Packages - SO-16_2022
click to zoom

PAM8403DR Details

  • Manufacturer Part Number:

    PAM8403DR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    24 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    3.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

PAM8403DR Frequently Asked Questions (FAQs)

  • A good PCB layout for the PAM8403DR involves keeping the audio signal traces short and away from the power supply traces, using a solid ground plane, and placing the decoupling capacitors close to the IC.
  • The gain setting of the PAM8403DR can be optimized by adjusting the values of the external resistors Rf and Ri. A higher gain setting can be achieved by increasing the value of Rf or decreasing the value of Ri.
  • The maximum power dissipation of the PAM8403DR is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at an ambient temperature of 25°C.
  • Yes, the PAM8403DR can be used with a single power supply. The IC has a built-in voltage regulator that allows it to operate from a single power supply voltage.
  • To filter out noise and EMI in your audio circuit, you can add external filters such as RC filters or ferrite beads to the audio signal lines. Additionally, using a shielded cable and keeping the audio circuit away from noisy components can help reduce noise and EMI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PAM8403DR Overview

Use the download button to access the PAM8403DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM84, or try a keyword search, such as Audio/Video Amplifiers
