A good PCB layout for the PAM8404ZER involves keeping the audio signal traces short and away from the power supply lines, using a solid ground plane, and placing decoupling capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To prevent oscillation and noise, ensure that the input and output traces are properly terminated, and the power supply lines are well-filtered. Also, avoid using long wires or traces for the input and output connections, and keep the gain setting within the recommended range.
The maximum power dissipation of the PAM8404ZER is dependent on the ambient temperature and the thermal resistance of the PCB. However, as a general guideline, the maximum power dissipation is around 2.5W at an ambient temperature of 25°C.
Yes, the PAM8404ZER can be used with a single power supply. However, it's recommended to use a dual power supply (±VCC) for optimal performance and to minimize distortion. If a single power supply is used, ensure that the voltage is within the recommended range and that the output is properly biased.
The gain of the PAM8404ZER can be adjusted by changing the value of the feedback resistors (Rf) and the input resistors (Ri). A higher gain can be achieved by increasing the value of Rf and decreasing the value of Ri, while a lower gain can be achieved by decreasing the value of Rf and increasing the value of Ri.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM8404ZER Overview

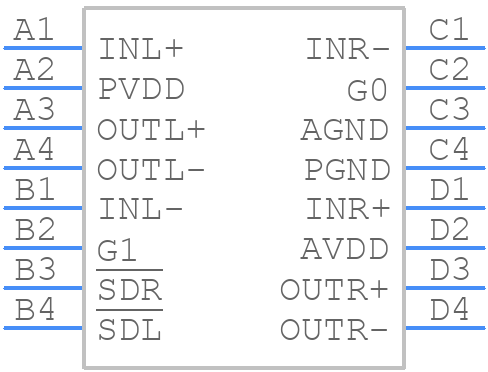

Use the download button to access the PAM8404ZER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM84,
or try a keyword search, such as Audio/Video Amplifiers
