A good PCB layout for the PAM8406ER involves keeping the audio signal traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The gain setting of the PAM8406ER can be optimized by adjusting the values of the external resistors Rf and Ri. A higher gain setting can be achieved by increasing the value of Rf or decreasing the value of Ri. However, be careful not to exceed the maximum gain setting to avoid oscillation.
It is recommended to use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor as close as possible to the power pins of the PAM8406ER. This helps to filter out high-frequency noise and ensure stable operation.
To protect the PAM8406ER from overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power for extended periods. Also, make sure to follow the recommended thermal design guidelines in the datasheet.
The recommended input impedance for the PAM8406ER is around 10kΩ to 20kΩ. This helps to ensure a stable gain and prevent oscillation. However, the optimal input impedance may vary depending on the specific application and input signal characteristics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM8406ER Overview

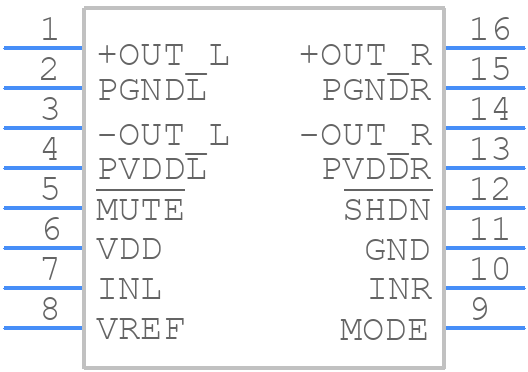

Use the download button to access the PAM8406ER schematic symbol and PCB footprint.
