A good PCB layout for optimal thermal performance involves placing the PAM8615RHR near a thermal pad or a heat sink, and ensuring that there are no thermal barriers or obstacles nearby. The datasheet provides a recommended PCB layout, but it's also important to follow general thermal design guidelines, such as using a solid ground plane and minimizing the distance between the device and the thermal pad.
To optimize the output filter design, you should consider the output impedance of the PAM8615RHR, the load impedance, and the desired frequency response. A good starting point is to use a 2nd-order LC filter with a cutoff frequency around 100 kHz to 200 kHz. You can use filter design tools or simulation software to optimize the component values for your specific application.
The maximum power dissipation of the PAM8615RHR is dependent on the ambient temperature, package type, and thermal resistance. You can calculate the maximum power dissipation using the formula: Pd = (Tj - Ta) / Rth, where Pd is the power dissipation, Tj is the junction temperature, Ta is the ambient temperature, and Rth is the thermal resistance. The datasheet provides the thermal resistance values for different package types.
To protect the PAM8615RHR from overvoltage and undervoltage conditions, you can use voltage regulators or voltage supervisors to regulate the input voltage. You can also add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device. The datasheet provides guidelines for input voltage range and recommended operating conditions.
The recommended input capacitor value and type for the PAM8615RHR depend on the input voltage, output current, and desired ripple voltage. A good starting point is to use a 10 uF to 22 uF ceramic capacitor with a voltage rating of 25 V or higher. You can also use a film capacitor or a electrolytic capacitor, but make sure to follow the datasheet guidelines for input capacitor selection.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM8615RHR Overview

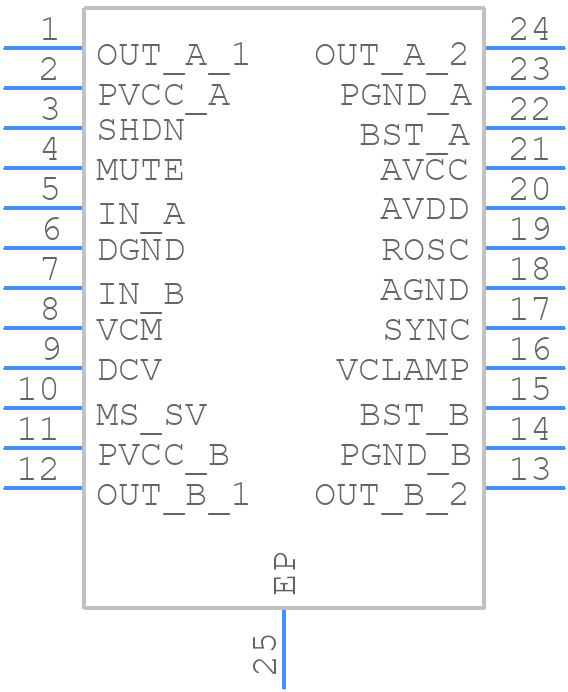

Use the download button to access the PAM8615RHR schematic symbol, PCB footprint, and 3D model.
