A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To optimize the output filter design, you should consider the output voltage ripple requirement, the output current, and the switching frequency. A good starting point is to use the recommended component values in the datasheet, and then adjust them based on your specific application requirements.
To prevent damage, handle the PAM8902HKER by the body, not the leads. Avoid bending or flexing the leads, and do not touch the die or the bond wires. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
To troubleshoot issues with the PAM8902HKER, start by checking the input voltage, output voltage, and output current. Verify that the component values are correct and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for guidance.
Operating the PAM8902HKER at a higher ambient temperature than specified can reduce its reliability and lifespan. Operating at a lower ambient temperature may not affect performance, but may affect the accuracy of the internal voltage reference. Consult the datasheet and application notes for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PAM8902HKER Overview

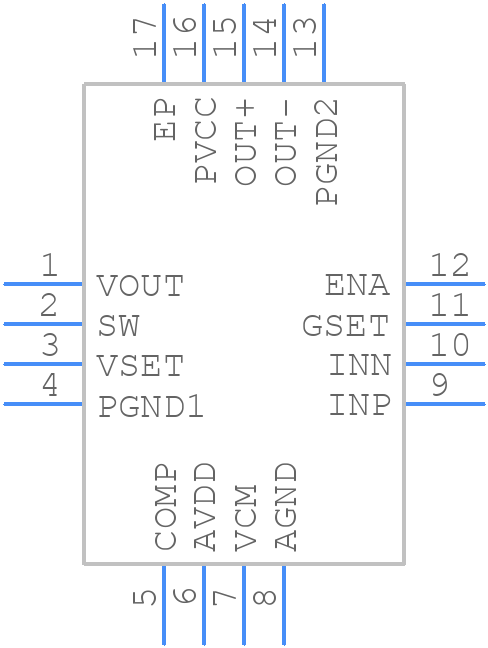

Use the download button to access the PAM8902HKER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM89,
or try a keyword search, such as Audio/Video Amplifiers
