PAM8908JER - Diodes Incorporated

Description: Audio Amplifiers 25mW STEREO TRUE CAP FREE HEADPHONE AMP

Download PAM8908JER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

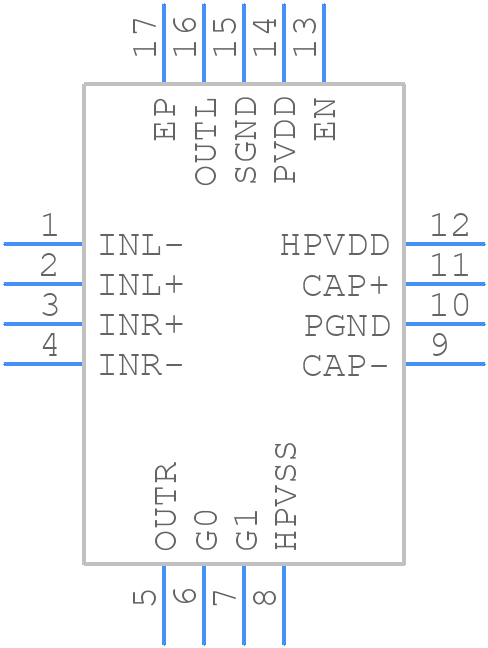

PAM8908JER - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
PAM8908JER - Diodes Incorporated PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PAM8908JER-
click to zoom
3D Models
PAM8908JER - Diodes Incorporated - 3D model - Quad Flat No-Lead - PAM8908JER-
click to zoom

PAM8908JER Details

  • Manufacturer Part Number:

    PAM8908JER

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

PAM8908JER Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To optimize the output filter design, you should consider the output voltage ripple requirement, output current, and the switching frequency. A good starting point is to use the recommended component values in the datasheet, and then adjust them based on your specific application requirements.
  • The maximum input voltage that can be applied to the PAM8908JER is 18V. Exceeding this voltage may damage the device.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR.
  • The maximum output current that the PAM8908JER can deliver is 2A. Exceeding this current may cause the device to overheat or malfunction.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PAM8908JER Overview

Use the download button to access the PAM8908JER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PAM89, or try a keyword search, such as Audio/Video Amplifiers
