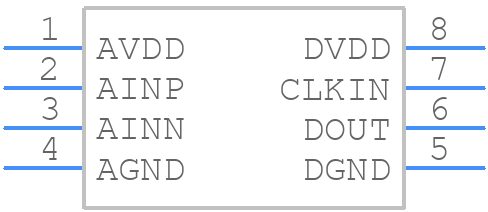

PAMC1336DWVR - Texas Instruments

PAMC1336DWVR Details

• Manufacturer Part Number:

  PAMC1336DWVR

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Active Unconfirmed

• Package Description:

  SOIC-8

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2019-08-09

• Manufacturer:

  Texas Instruments

• YTEOL:

  2

• Analog IC - Other Type:

  ANALOG CIRCUIT

• JESD-30 Code:

  R-PDSO-G8

• Length:

  7.5 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.45

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Seated Height-Max:

  2.8 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  5.85 mm
