Description:The PB51 is a 1.5A, 300V Integrated Circuit amplifier designed to provide voltage and current gain for a small-signal, general purpose operational amplifier. By using the PB51 Integrated Circuit within the feedback loop of a driver amplifier, the resulting composite amplifier has the accuracy of the driver with the extended output voltage range and current capability of the booster. The PB51 can be used without a driver amplifier in some applications, requiring only an external current limit resistor to fun
Apex recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers. Additionally, a thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
To ensure reliable operation over the full temperature range, Apex recommends following the recommended operating conditions, using a suitable heat sink, and ensuring good thermal management. Additionally, the device should be operated within the recommended voltage and current limits, and the input and output capacitors should be selected to meet the required ripple current and voltage ratings.
The PB51 has a maximum output current of 1A and a maximum output voltage of 50V. However, the device can be operated at lower output currents and voltages depending on the application requirements. It's essential to ensure that the device is operated within the recommended operating conditions to prevent overheating and ensure reliable operation.
Apex recommends using external protection devices such as overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage to the PB51. Additionally, the device should be operated within the recommended voltage and current limits, and the input and output capacitors should be selected to meet the required ripple current and voltage ratings.
Apex recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output capacitors. The capacitors should be selected based on the application requirements, and the voltage and current ratings should be compatible with the device's operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PB51 Overview

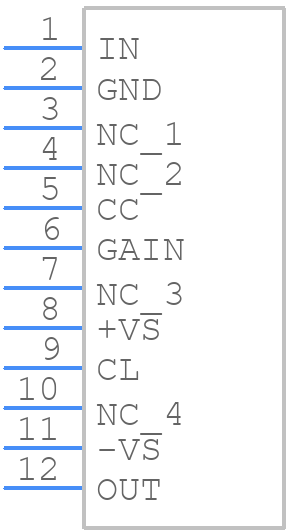

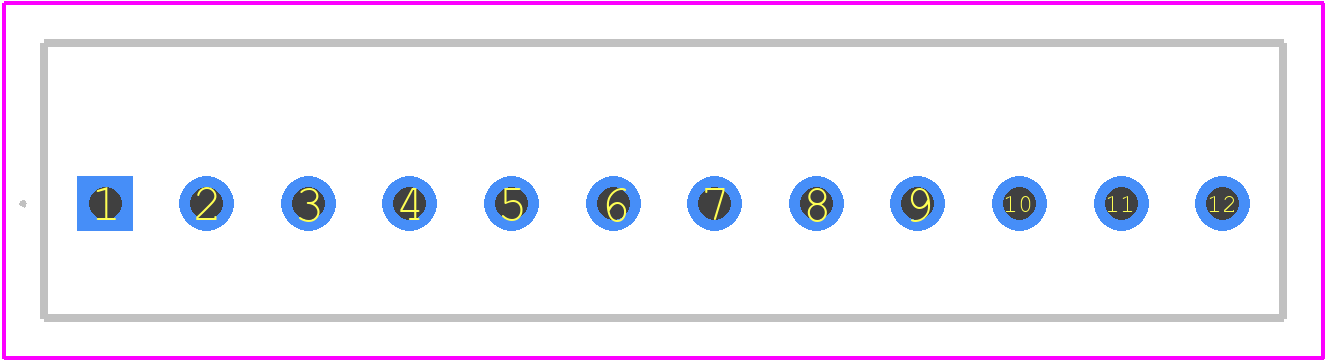

Use the download button to access the PB51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Operational Amplifiers
