PBSS9110Y - Nexperia

Description: PBSS9110Y, PNP Bipolar Transistor, 1A 100V HFE:125V 100MHz Small Signal, 6-Pin UMT

Download PBSS9110Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

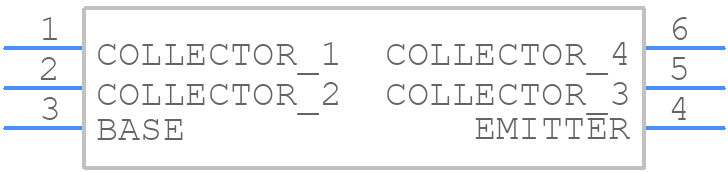

PBSS9110Y - Nexperia - PCB symbol
click to zoom
PCB Footprints
PBSS9110Y - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT-363
click to zoom
3D Models
PBSS9110Y - Nexperia - 3D model - Small Outline Packages - SOT-363
click to zoom

PBSS9110Y Details

  • Manufacturer Part Number:

    PBSS9110Y

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PBSS9110Y Overview

Use the download button to access the PBSS9110Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBSS9, or try a keyword search, such as Small Signal Bipolar Transistors
