PC16550DVEF - Texas Instruments

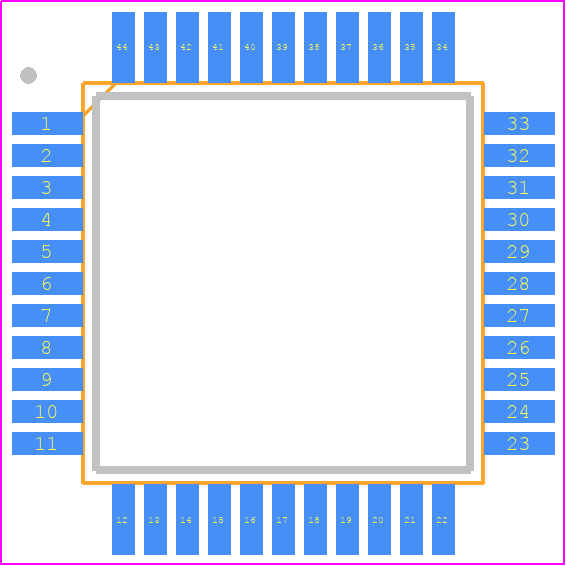

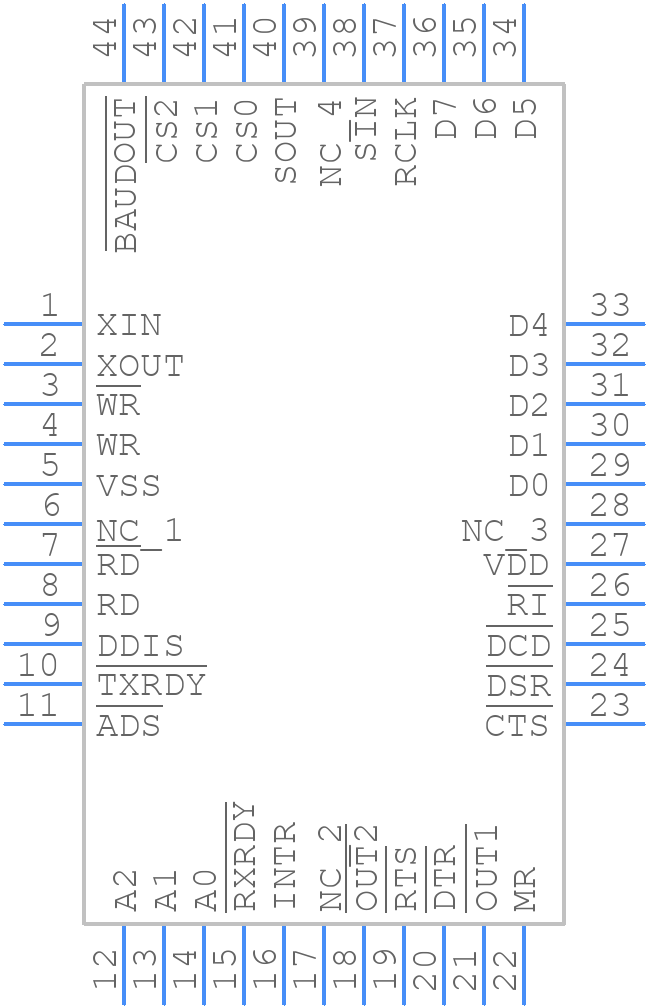

PC16550DVEF Details

• Manufacturer Part Number:

  PC16550DVEF

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

• Package Description:

  TQFP-44

• Pin Count:

  44

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Address Bus Width:

  3

• Boundary Scan:

  NO

• Bus Compatibility:

  8088

• Clock Frequency-Max:

  24 MHz

• Communication Protocol:

  ASYNC, BIT

• Data Encoding/Decoding Method:

  NRZ

• Data Transfer Rate-Max:

  0.1875 MBps

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQFP-G44

• Length:

  10 mm

• Low Power Mode:

  NO

• Number of Serial I/Os:

  1

• Number of Terminals:

  44

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Seated Height-Max:

  2.35 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
