PC87108AVHG - Texas Instruments

PC87108AVHG Details

• Manufacturer Part Number:

  PC87108AVHG

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

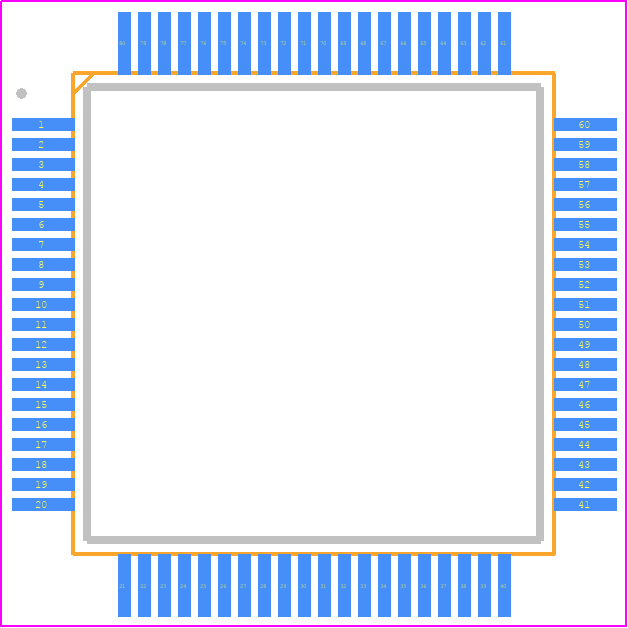

• Package Description:

  LFQFP, QFP80,.55SQ,20

• Reach Compliance Code:

  Unknown

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Address Bus Width:

  16

• Boundary Scan:

  NO

• Bus Compatibility:

  ISA

• Clock Frequency-Max:

  8.13 MHz

• Communication Protocol:

  ASYNC, BIT

• Data Encoding/Decoding Method:

  NRZ

• Data Transfer Rate-Max:

  0.1875 MBps

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQFP-G80

• JESD-609 Code:

  e0

• Length:

  12 mm

• Low Power Mode:

  YES

• Number of I/O Lines:

  4

• Number of Serial I/Os:

  1

• Number of Terminals:

  80

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP80,.55SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• RAM (words):

  0

• Seated Height-Max:

  1.5 mm

• Supply Current-Max:

  50 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.97 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  MOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  12 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
