PCA9460AUKZ - NXP

Description: Power Management Specialized - PMIC Power Manage IC (PMIC) for i.MX 8ULP + LPDDR4

Download PCA9460AUKZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

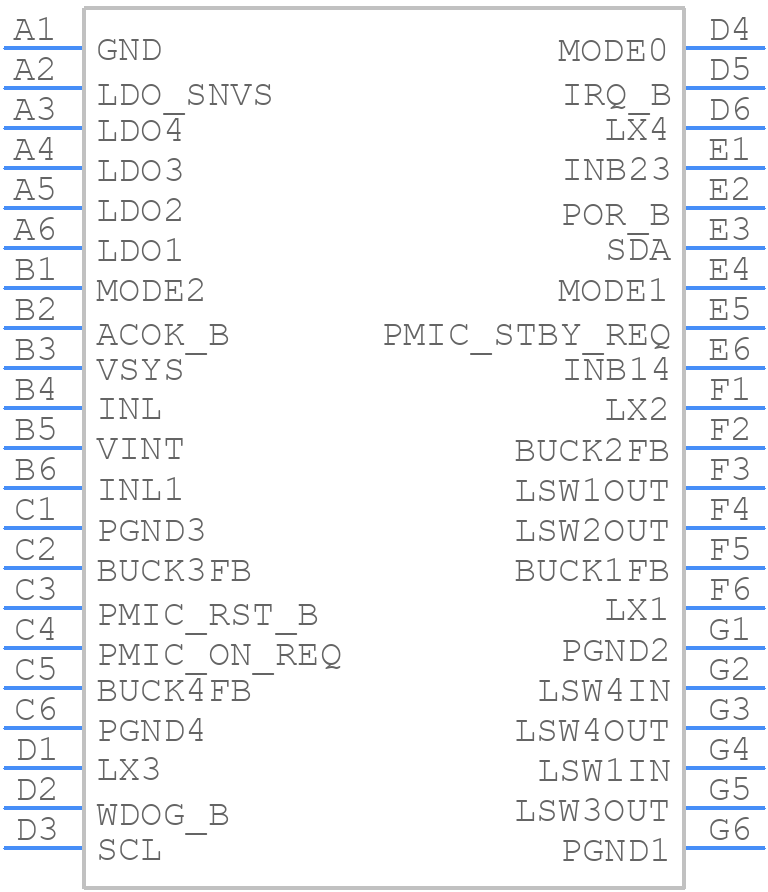

PCA9460AUKZ - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9460AUKZ - NXP PCB footprint - BGA - BGA - PCA9460AUKZ
click to zoom
3D Models
PCA9460AUKZ - NXP - 3D model - BGA - PCA9460AUKZ
click to zoom

PCA9460AUKZ Details

  • Manufacturer Part Number:

    PCA9460AUKZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PBGA-B42

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    9

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    BGA42(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

PCA9460AUKZ Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11559, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The PCA9460AUKZ can be configured for I2C or SMBus operation by setting the appropriate values for the SCL and SDA pins. Refer to the datasheet section 8.3.1 for I2C and section 8.3.2 for SMBus configuration. Additionally, NXP provides a configuration tool, PCA9460 Configurator, to simplify the process.
  • The maximum cable length supported by the PCA9460AUKZ depends on the clock frequency and the capacitance of the bus. As a general guideline, NXP recommends a maximum cable length of 1 meter for I2C and 3 meters for SMBus. However, this can be extended by using repeaters or buffers.
  • NXP provides a troubleshooting guide in the application note AN11559, which covers common issues and their solutions. Additionally, engineers can use tools like oscilloscopes and logic analyzers to debug the bus signals and identify the root cause of the issue.
  • Yes, the PCA9460AUKZ is compatible with other NXP I2C bus controllers, such as the PCA9547 and PCA9517. However, engineers should ensure that the specific device is compatible with the target application and operating conditions.
